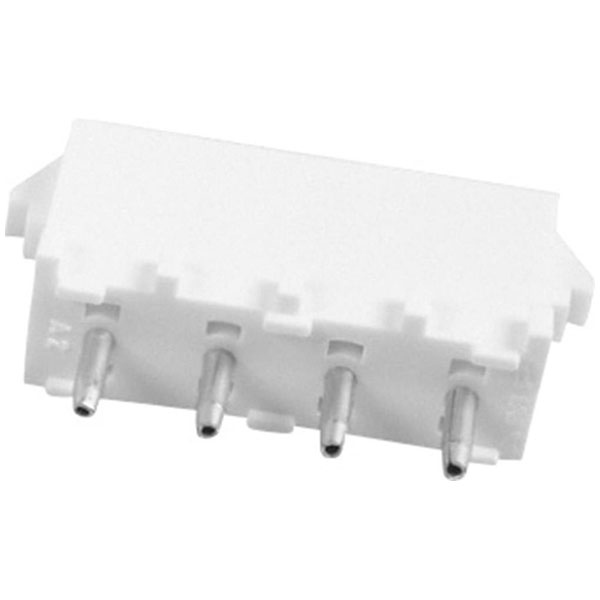

The TE Connectivity 350430-1 is a pin-socket connector designed for male, unshrouded applications.
It features four positions and a tail configuration.
This component is typically used in electrical and electronic systems for secure and reliable connections.
Its robust design makes it suitable for various industrial applications.
| Pitch |
6.35mm |
| No. of Rows |
1 |
| No. of Ways |
4 |
| Case Material |
Polyamide |
| Circuit Application |
Power |
| Compatible With Agency/Standards Products |
VDE |
| Compatible With Approved Standards Products |
UL E28476 |
| Connection |
Print |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Contact Load Condition |
Fully Loaded |
| Connector contact surface |
Gold plated |
| Connector Height |
.55 |
| Connector Length |
1.05 |
| Connector Mounting Type |
Board Mount |
| Connector Product Type |
Connector Assembly |
| Connector System |
wire-to-board |
| Connector Type |
Plug, vertical mount |
| Connector Width |
.3 |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating (Max) |
12 |
| Contact Finish |
Copper alloy |
| Contact Layout |
Inline |
| Contact Mating Area Plating Material |
Pre-Tin |
| Contact Mating Area Plating Material Thickness |
150 – 200 |
| Contact Shape & Form |
Round |
| Contact Type |
Pin |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
50 – 70 |
| Dim |
(L x W x H) 7.62 x 26.67 x 18.67 mm |
| Factory colour |
Ecru |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Header Type |
Fully Shrouded |
| Height |
18.67mm |
| Housing Material |
Nylon |
| Industrial packaging |
No |
| Insulation Material |
Polyamide |
| Length |
7.62mm |
| Mating Alignment |
With |
| Mating Alignment Type |
Polarization |
| Mating Retention |
With |
| Mating Retention Type |
Locking Tab |
| Max. temperature |
+105°C |
| Min. temperature |
-55°C |
| Misc Attribute |
UNIVERSAL MATE-N-LOK |
| Nominal Current |
12A |
| Nominal current - rounded value |
12A |
| Nominal Voltage |
600V AC |
| Number of Columns |
4 |
| Number of Power Positions |
4 |
| Operating Temperature (Max) |
221 |
| Operating Temperature Range |
-40 – 221 |
| Operating Voltage |
600 |
| Packaging Method |
Bag |
| Packaging Quantity |
100 |
| Panel Mount Feature |
Without |
| PCB Connector Type |
PCB Mount Header |
| PCB Contact Termination Area Plating Material |
Pre-Tin |
| PCB Contact Termination Area Plating Material Thickness |
150 – 200 |
| PCB Mount Alignment |
Without |
| PCB Mount Orientation |
Vertical |
| PCB Mount Retention |
Without |
| PCB Thickness (Recommended) |
.062 |
| Pin Length |
4.45mm |
| Pin shape |
Circular |
| Pins per row |
4 |
| Primary Product colour |
Natural |
| Sealable |
No |
| Series |
Universal-MATE-N-LOK |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.14 |
| Type |
Pin housing PCB |
| UL Flammability Rating |
UL 94V-2 |
| UL Rating |
Recognized |
| Width |
26.67mm |
