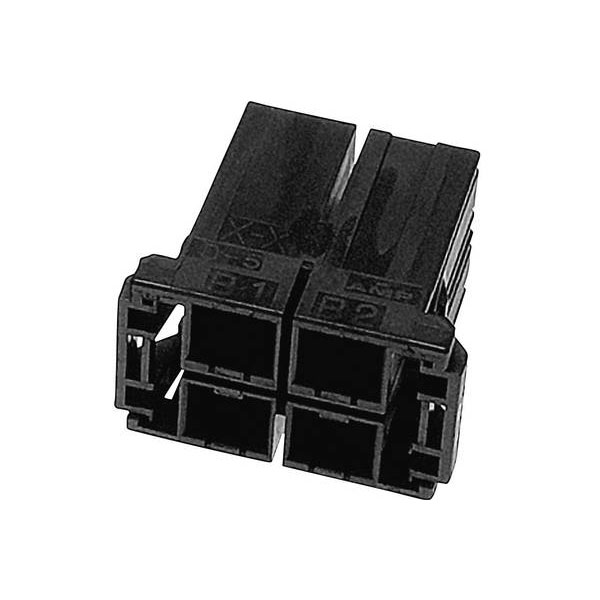

The TE Connectivity 3-917807-2 is a durable housing designed for female connectors.
This shrouded component accommodates 4 positions, ensuring secure and reliable connections.
Made of robust materials, it is suitable for use in demanding environments.
It is typically used in automotive and industrial applications for optimal performance.
| Type |
Socket housing cable |
| Pitch |
10.1346mm |
| Number of Ways |
4 |
| Number of Rows |
2 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Case Material |
Polyester |
| Circuit Application |
Power |
| Code |
XY |
| Colour |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector contact surface |
Tin plated |
| Connector Height |
.78 |
| Connector Length |
1.31 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Type |
Socket, straight |
| Connector Width |
1.14 |
| Contact Base Material |
Copper Alloy |
| Contact Gender |
FEMALE |
| Contact Type |
Receptacle |
| Dielectric Withstanding Voltage |
3000VAC |
| Dimensions |
(L x W x H) 19.96 x 33.36 x 29 mm |
| Height |
29mm |
| Housing Material |
Thermoplastic GF |
| Industrial packaging |
No |
| Insulation Material |
Polyester |
| Insulator Color |
BLACK |
| Insulator Material |
GLASS FILLED POLYESTER |
| Length |
19.96mm |
| Mating Retention |
With |
| Max Operating Temperature |
105 |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-55 |
| Min. temperature |
-55°C |
| Misc Attribute |
D-5200M |
| Mounting Style |
STRAIGHT |
| Nominal Current |
30A |
| Nominal current - rounded value |
30A |
| Number Of Connectors |
ONE |
| Operating Temperature Range |
-67 – 221 |
| Packaging Method |
Bag |
| Packaging Quantity |
600 |
| Pin shape |
Rectangular |
| Pins per row |
2 |
| Primary Product colour |
Black |
| Reliability |
COMMERCIAL |
| Row-to-Row Spacing |
.399 |
| Sealable |
No |
| Series |
DYNAMIC 5000 Series |
| Termination Method to Wire & Cable |
Crimp |
| Termination Type |
WIRE |
| Total Number of Contacts |
4 |
| UL Flammability Code |
94V-0 |
| UL Flammability Rating |
UL 94V-0 |
| Width |
33.36mm |
