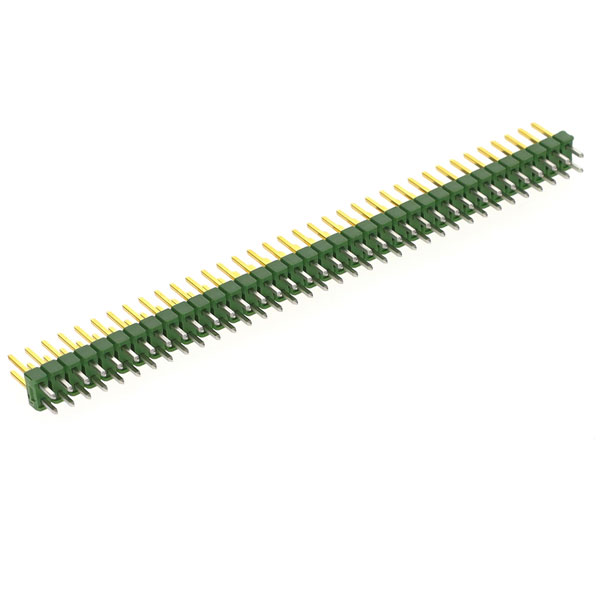

The TE Connectivity 3-826656-6 is a male unshrouded header with 36 positions, suitable for use in tight spaces on printed circuit boards.
It features a robust and reliable design for secure connections in electronic applications.
The AMPMODU II series is ideal for applications requiring high-density board-to-board or board-to-cable interconnections.
Commonly used in consumer electronics, telecommunications, and industrial equipment.
| Number of Positions |
72 |
| Pitch |
2.54mm |
| Number of Rows |
2 |
| Board Standoff |
No (Without) |
| Contact Current Rating |
5a |
| Contact Finish - Mating |
GOLD |
| Contact Gender |
Male |
| Contact Material |
Bronze |
| Contact Mating Length |
5.8mm |
| Contact Plating |
Gold, Tin |
| Contact Post Length |
0.1259inch |
| Contact Protection |
No (Without) |
| Contact Shape |
Square |
| Contact Type |
Male Pin |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gasket |
No (Without) |
| High Speed Serial Data Connector |
No |
| High Temperature Housing |
No |
| Housing Color |
Green |
| Insulation Material |
PBT |
| Keyed |
No |
| Mating Alignment |
No (Without) |
| Mating Connector Lock |
No (Without) |
| Max Operating Temperature |
105°C |
| Min Operating Temperature |
-65°C |
| Mount |
Through Hole |
| Number of Contacts |
72 |
| Package Quantity |
200 |
| Packaging |
Carton |
| PCB Mount Retention |
Without |
| PCB Mounting Orientation |
Vertical |
| Plating Thickness |
0.8um |
| RoHS Compliant |
Yes |
| Row Spacing |
2.54mm |
| Selectively Loaded |
No (Without) |
| Series |
AMPMODU MOD II |
| Stabilizers |
No (Without) |
| Strain Relief |
No (Without) |
| Termination |
Through Hole |
