TE Connectivity 3-770565-1 PCB Terminal Brass Tin 1.83mm Unshrouded

Inc VAT

Qty	Unit Price (Ex VAT)
7000+	£0.098

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 7000

Available to back orderBack order, lead time 4 months

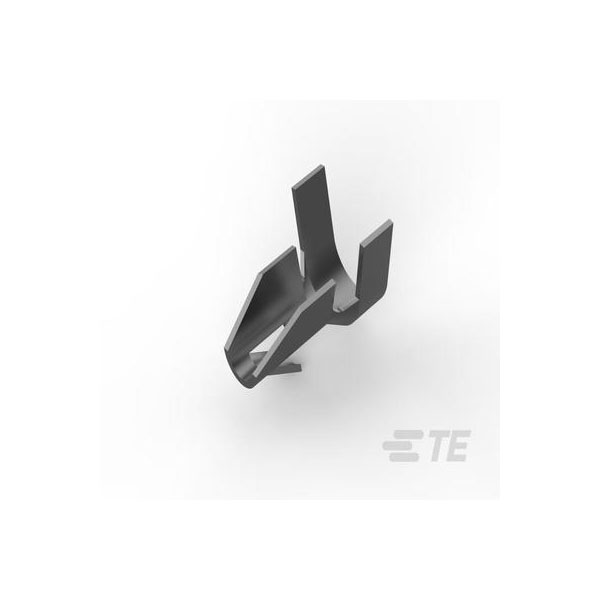

The TE Connectivity 3-770565-1 is a PCB terminal made of brass with a tin plating.

It features a 1.83 mm diameter suitable for unshrouded connections.

This component is ideal for use in various electronic and electrical applications, providing reliable conductivity.

Its sturdy construction ensures durability and consistent performance.

Type	PCB Terminals
Pin or Socket	Female
Body Material	Brass
Body Plating	Tin
Compatible Insulation Diameter Range	.06 – .11
Contact Material	Brass, Bronze
Contact Mating Area Plating Material Thickness	157.48
Contact Plating	Tin
Contact Underplating Material	Brass
Depth	3.94mm
ELV	Compliant
Gender	Male
Insulated Wire Support	Yes
Insulation	Non-Insulated
Insulation Diameter	0.11inch
Insulation Option	Uninsulated
Length	5.59mm
Material	Brass
Mounting Type	PCB
Operating Temperature Range	-67 – 221
Package Quantity	7000
Packaging	Tape and Reel
Packaging Method	Reel
Packaging Quantity	7000
PCB Thickness	0.062inch
PCB Thickness (Recommended)	.062
Pitch	2.54mm
Plating	Tin
Product Terminates To	Printed Circuit Board
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Mini Amp-In
Terminal Material	Brass
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Crimp
Termination Method to PCB	Through Hole - Solder
Wire Gauge (Max)	22AWG
Wire Gauge (Min)	18AWG
Wire Insulation Support	With
Wire Size	22 – 18
Wire/Cable Gauge	-18AWG
