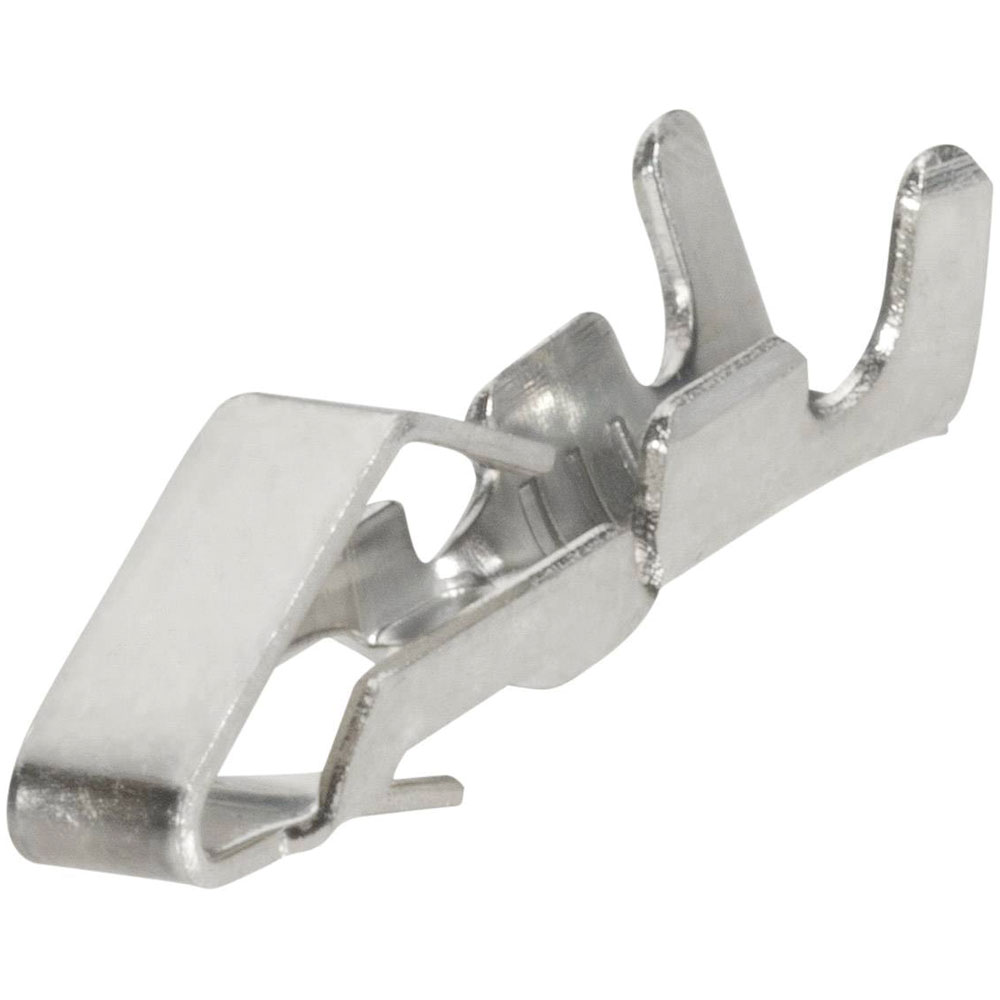

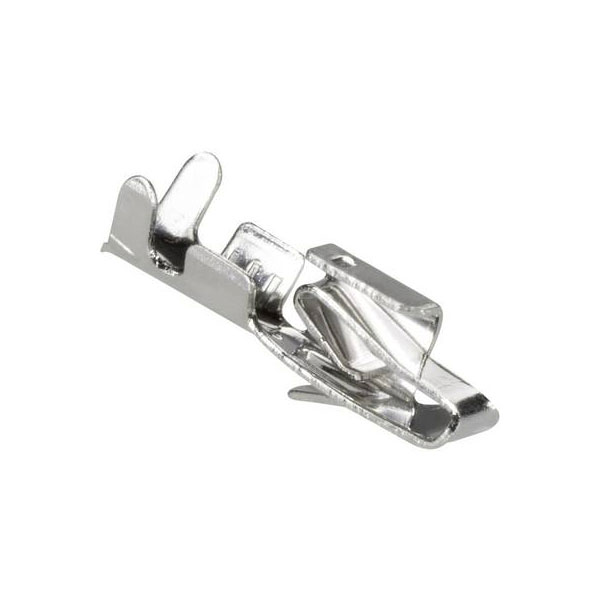

TE Connectivity's 3-770522-1 is a hooded female contact designed for reliable electrical connections.
This product features a low profile and shrouded design, enhancing safety and protection in use.
The SL156 hooded female contact is ideal for use in consumer electronics and automotive applications.
With its sturdy construction, it ensures long-lasting performance in demanding environments.
| Type |
Crimp contact |
| AWG (min.) |
24 |
| AWG max. |
18 |
| Circuit Application |
Power |
| Connection |
Crimp |
| Connector contact surface |
Tin plated |
| Connector System |
wire-to-board |
| Contact Base Material |
Phosphor Bronze |
| Contact Current Rating |
10a |
| Contact Current Rating (Max) |
10 |
| Contact Gender |
Female |
| Contact Material |
Copper alloy |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Mating Area Plating Material Finish |
Bright |
| Contact Plating |
Tin, Bright |
| Contact Retention |
Yes (With) |
| Contact Retention Within Housing |
With |
| Contact Style |
Standard |
| Contact Type |
Socket |
| Contact Underplating Material |
Nickel |
| Current Rating |
10A |
| Depth |
3.94mm |
| ELV |
Compliant |
| Gender |
Female |
| Height |
6.6mm |
| Housing Color |
Black |
| Industrial packaging |
No |
| Insulation Diameter |
0.11inch |
| Lead Free |
Lead Free |
| Length |
37.08mm |
| Mating Square Post Dimension |
.045 |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| max. cross section |
0.90mm² |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. cross section |
0.20mm² |
| Min. temperature |
-55°C |
| Misc Attribute |
SL-156 |
| Mount |
Cable, Through Hole |
| Nominal Voltage |
250V AC |
| Number of Contacts |
14 |
| Number of Rows |
1 |
| Operating Supply Voltage |
250v |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Bag |
| Packaging Method |
Bag & Box |
| Packaging Quantity |
1000 |
| Pin shape |
Rectangular |
| Pins per row |
1 |
| Pitch |
3.96mm |
| Plating |
Tin |
| Plating Thickness |
2.03um |
| Plug / Socket |
Socket |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No (Without) |
| Series |
SL-156 |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Total number of pins |
1 |
| Underplate Material |
Nickel |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
24AWG |
| Wire Size |
24 – 18 |
| Wire/Cable Gauge |
24AWG |
| Wire/Cable Type |
Discrete |
