TE Connectivity 3-643817-2 MTA-156 SIL Socket 2 Pins Standard

TE Connectivity 3-643817-2 MTA-156 SIL Socket 2 Pins Standard

TE Connectivity
Order Code:

07-4502

Brand: TE Connectivity MPN: 3-643817-2 EAN-13: 2050002848528

Discontinued

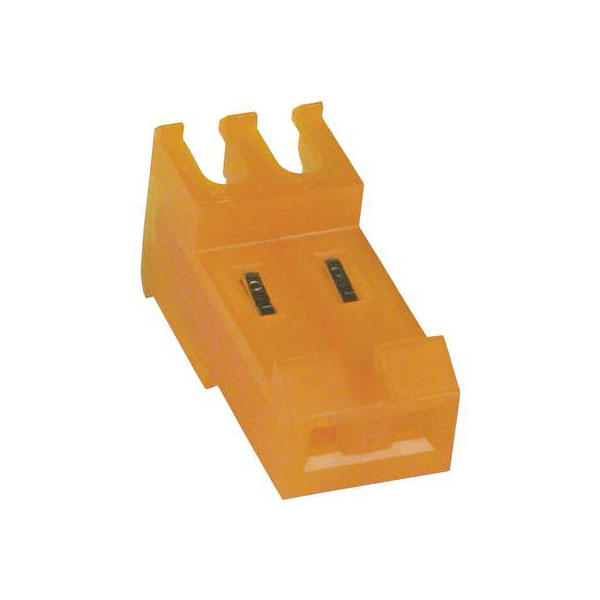

The TE Connectivity SIL socket (standard) MTA-156, part number 3-643817-2, has two pins and is designed for efficient wire-to-board connections. This component, widely used in automotive, industrial, and telecom applications, ensures reliable electrical performance. With its robust design, it supports operational efficiency in environments requiring consistent connectivity.
No. of Rows 1
No. of Ways 2
Contact Finish Copper alloy
AWG (min.) 18
AWG max. 18
Board contact surface Tin plated
Case Material Polyamide
Connection Cut & Clip
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, right angle
Dim (L x W x H) 7.92 x 18.42 x 9.02 mm
Factory colour Orange
Height 9.02mm
Industrial packaging No
Insulation Material Polyamide
Length 7.92mm
max. cross section 0.90mm²
Max. temperature +105°C
Min. cross section 0.80mm²
Min. temperature -55°C
Misc Attribute MTA-156
Nominal Current 7A
Nominal current - rounded value 7A
Nominal Voltage 600V AC
Pin shape Rectangular
Pins per row 2
Series MTA-156
Type SIL socket (standard)
Width 18.42mm
