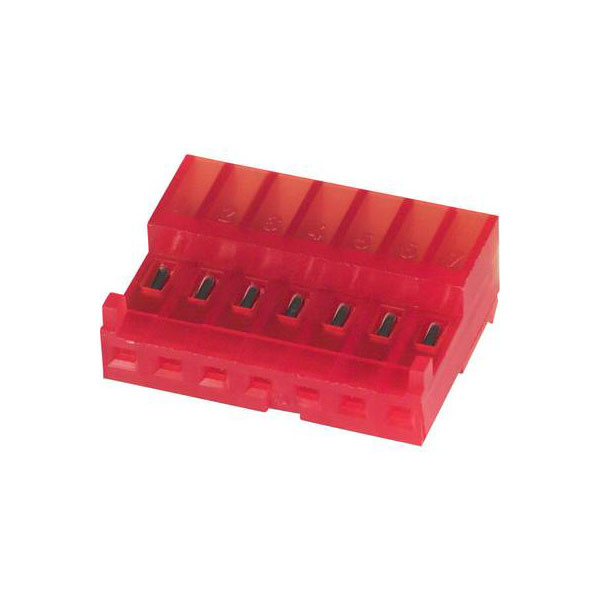

TE Connectivity 3-643813-7 MTA-100 SIL Socket 7 Pins 1 pc

Image Representative of Range

TE Connectivity 3-643813-7 MTA-100 SIL Socket 7 Pins 1 pc

TE Connectivity
Order Code:

07-4492

Brand: TE Connectivity MPN: 3-643813-7 EAN-13: 2050002841741
Qty Unit Price (Ex VAT)
20+ £0.312
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
94 in stock, despatched in 4 working days

The TE Connectivity SIL socket (standard) MTA-100 with part number 3-643813-7 is a reliable electrical connector known for its 7-pin configuration. It is ideal for wire-to-board connections in electronic applications, ensuring secure and efficient data and power transmission. Its robust design is suitable for use in various industrial and consumer electronics, enhancing connectivity and performance.
No. of Rows 2.54mm
No. of Ways 7
AWG (min.) 22
AWG max. 22
Board contact surface Tin plated
Case Material Polyamide
Centerline (Pitch) 2.54mm
Circuit Application Signal
Compatible With Agency/Standards Products CSA
Compatible With Approved Standards Products UL E28476
Connection Cut & Clip
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Receptacle
Connector contact surface Tin plated
Connector Height .52
Connector Length .7
Connector Mounting Type Cable Mount (Free-Hanging)
Connector Product Type Connector Assembly
Connector System wire-to-wire
Connector Type Socket, right angle
Connector Width .275
Contact Current Rating (Max) 5
Contact Finish Copper alloy
Contact Mating Area Plating Material Tin (Sn)
Contact Retention Within Housing With
Contact Type Receptacle
Contact Underplating Material Nickel
Contacts Preloaded Yes
Dim (L x W x H) 6.99 x 17.78 x 13.21 mm
Factory colour Red
Height 13.21mm
Housing Material Nylon
Industrial packaging No
Insulation Material Polyamide
Length 6.99mm
Mating Alignment With
Mating Alignment Type Polarization
Mating Retention With
Mating Retention Type Locking Ramp
max. cross section 0.40mm²
Max. temperature +105°C
Min. cross section 0.30mm²
Min. temperature -55°C
Misc Attribute MTA-100
Nominal Current 5A
Nominal current - rounded value 5A
Nominal Voltage 250V AC
Number of Positions 7
Number of Rows 1
Operating Temperature Range -67 – 221
Operating Voltage 250
Packaging Method Bag/Box
Packaging Quantity 500
Pin shape Rectangular
Pins per row 7
Primary Product Color Red
Sealable No
Series MTA-100
Shielded No
Termination Method to Wire & Cable Insulation Displacement (IDC)
Type SIL socket (standard)
UL Flammability Rating UL 94V-2
UL Rating Recognized
Width 17.78mm
Wire Size 22
