TE Connectivity 3-643813-3 MTA-100 SIL Socket 3 Pins 1 pc

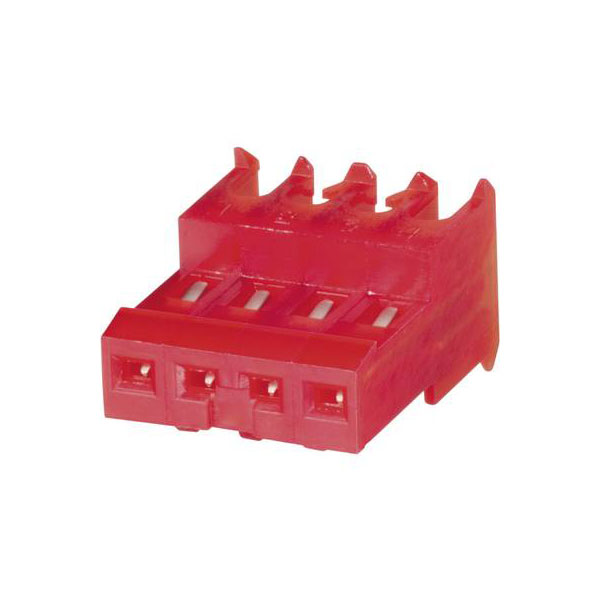

Image Representative of Range

TE Connectivity 3-643813-3 MTA-100 SIL Socket 3 Pins 1 pc

TE Connectivity
Order Code:

07-4491

Brand: TE Connectivity MPN: 3-643813-3 EAN-13: 2050002841765
Qty Unit Price (Ex VAT)
50+ £0.180
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
13 in stock, despatched in 4 working days

The TE Connectivity SIL socket (standard) MTA-100 is designed with a total of three pins ensuring reliable connectivity for various electronic assemblies. This component is ideal for use in applications requiring efficient signal transmission and can accommodate the demands of both industrial and commercial environments. Manufactured by Tyco Electronics, the socket provides durable performance and easy installation in a single 1 pc(s) configuration.
AWG (min.) 22
AWG max. 22
Board contact surface Tin plated
Case Material Polyamide
Connection Cut & Clip
Connector contact surface Tin plated
Connector system wire-to-wire
Connector Type Socket, right angle
Contact Material Copper alloy
Dim (L x W x H) 6.99 x 13.21 x 7.62 mm
Factory colour Red
Height 7.62mm
Industrial packaging No
Insulation Material Polyamide
Length 6.99mm
max. cross section 0.40mm²
Max. temperature +105°C
Min. cross section 0.30mm²
Min. temperature -55°C
Misc Attribute MTA-100
Nominal Current 5A
Nominal current - rounded value 5A
Nominal Voltage 250V AC
Number of Rows 1
Pin shape Rectangular
Pins per row 3
Series MTA-100
Total number of pins 3
Type SIL socket (standard)
Width 13.21mm
