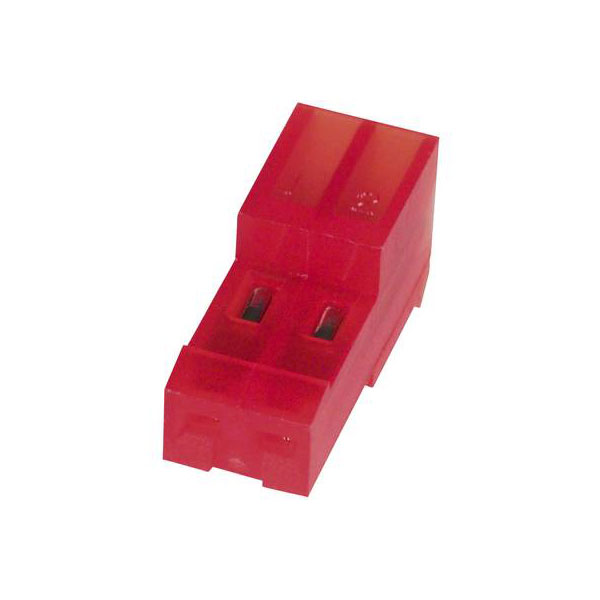

TE Connectivity 3-640620-6 MTA-100 SIL Socket 6-Pin Standard 1 pc

The SIL socket by TE Connectivity in the MTA-100 series, type 3-640620-6, features a standard design with a total of 6 pins. It is typically used in various electronic applications for reliable connections in printed circuit boards. The product is widely recognised for its durability and precise fit, making it suitable for industrial and commercial applications.

Pitch	2.54mm
No. of Rows	1
No. of Ways	6
Approvals	CSA
AWG (min.)	22
AWG max.	22
Backwall/Post Interruptions	No (Without)
Board contact surface	Tin plated
Case Material	Polyamide
Circuit Application	Signal
Color	Red
Compatible With Agency/Standards Products	CSA
Compatible With Approved Standards Products	UL E28476
Connection	Cut & Clip
Connector & Contact Terminates To	Wire & Cable
Connector & Housing Type	Receptacle
Connector contact surface	Tin plated
Connector Height	.52
Connector Length	.6
Connector Mounting Type	Cable Mount (Free-Hanging)
Connector Product Type	Connector Assembly
Connector System	wire-to-wire
Connector Type	Socket, right angle
Connector Width	.305
Contact Current Rating	5a
Contact Current Rating (Max)	5
Contact Finish	Copper alloy
Contact Gender	Female
Contact Material	Copper Alloy
Contact Mating Area Plating Material	Tin (Sn)
Contact Plating	Tin, Matte
Contact Retention	Yes (With)
Contact Retention Within Housing	With
Contact Type	Receptacle
Contact Underplating Material	Nickel
Contacts Preloaded	Yes
Current Rating	5a
Depth	7.75mm
Dim	(L x W x H) 7.75 x 15.24 x 13.21 mm
ELV	Compliant
Factory colour	Red
Flammability Rating	UL94 V-2
Gender	Receptacle
Height	13.21mm
Housing Color	White
Housing Material	Nylon
Industrial packaging	No
Insulation Diameter	1.52mm
Insulation Material	Polyamide
Lead Free	Not Applicable
Length	7.75mm
Mating Alignment	Without
Mating Retention	With
Mating Retention Type	Locking Ramp
Max Operating Temperature	221°C
Max Voltage Rating (AC)	250v
max. cross section	0.40mm²
Max. temperature	+105°C
Min Operating Temperature	-67°C
Min. cross section	0.30mm²
Min. temperature	-55°C
Misc Attribute	MTA-100
Mount	Free Hanging, Cable
Nominal Current	5A
Nominal current - rounded value	5A
Nominal Voltage	250V AC
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Operating Temperature Range	-67 – 221
Operating Voltage	250
Orientation	Right Angle
Package Quantity	500
Packaging	Bag
Packaging Method	Bag/Box
Packaging Quantity	500
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pin shape	Rectangular
Pins per row	6
Plating Thickness	5.08um
Primary Product colour	Red
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No
Series	MTA-100
Shielded	No
Shrouded	No (Without)
Strain Relief	Yes (With)
Termination	IDC
Termination Method to Wire & Cable	Insulation Displacement (IDC)
Type	SIL socket (standard)
UL Flammability Rating	UL 94V-2
UL Rating	Recognized
Underplate Material	Nickel
Voltage Rating (AC)	250v
Width	15.24mm
Wire Size	22
Wire/Cable Gauge	22AWG
Wire/Cable Type	Discrete, Ribbon
