TE Connectivity 3-640600-4 MTA-156 SIL Socket 4 Pins 1 pc

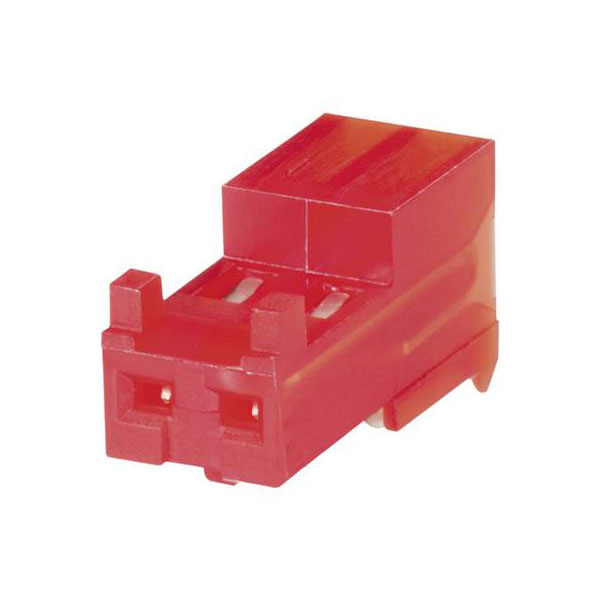

Image Representative of Range

TE Connectivity 3-640600-4 MTA-156 SIL Socket 4 Pins 1 pc

TE Connectivity
Order Code:

07-4480

Brand: TE Connectivity MPN: 3-640600-4 EAN-13: 2050002847460
Qty Unit Price (Ex VAT)
10+ £0.530
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
74 in stock, despatched in 4 working days

TE Connectivity manufactures the SIL socket (standard) MTA-156 with a total of four pins. This component is compatible with low-voltage applications and typically used in electrical connections where a secure and reliable link is essential. Its robust design makes it suitable for industrial and electronic assembly applications.
Pitch 3.96mm
No. of Rows 1
No. of Ways 4
Approvals CSA
AWG (min.) 20
AWG max. 20
Backwall/Post Interruptions No (Without)
Board contact surface Tin plated
Case Material Polyamide
Circuit Application Power
Color Yellow
Compatible Insulation Diameter Range .095
Compatible With Agency/Standards Products CSA
Compatible With Approved Standards Products UL E28476
Connection Cut & Clip
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Receptacle
Connector contact surface Tin plated
Connector Height .385
Connector Length .624
Connector Mounting Type Cable Mount (Free-Hanging)
Connector Product Type Connector Assembly
Connector System wire-to-board
Connector Type Socket, right angle
Contact Base Material Copper Alloy
Contact Current Rating 7a
Contact Current Rating (Max) 7
Contact Finish Copper alloy
Contact Gender Female
Contact Layout Inline
Contact Material Copper Alloy
Contact Mating Area Plating Material Tin (Sn)
Contact Mating Area Plating Material Finish Matte
Contact Mating Area Plating Material Thickness 80
Contact Plating Tin, Matte
Contact Retention Yes (With)
Contact Retention Within Housing With
Contact Type Receptacle
Contact Underplating Material Nickel
Contact Underplating Material Thickness .762
Current Rating 7a
Depth 9.78mm
Dim (L x W x H) 9.78 x 18.42 x 15.85 mm
ELV Compliant
Factory colour Yellow
Flammability Rating UL94 V-2
Gender Female
Glow Wire Rating Standard Part - Not Glow Wire
Height 15.85mm
Housing Color Yellow
Housing Material Nylon
Industrial packaging No
Insulation Diameter 0.095inch
Insulation Material Polyamide
Lead Free Lead Free
Length 9.78mm
Mating Alignment Without
Mating Retention With
Mating Retention Type Locking Ramp
Max Operating Temperature 221°C
Max Voltage Rating (AC) 600v
max. cross section 0.40mm²
Max. temperature +105°C
Min Operating Temperature -67°C
Min. cross section 0.50mm²
Min. temperature -55°C
Misc Attribute MTA-156
Mount Free Hanging, Cable
Nominal Current 7A
Nominal current - rounded value 7A
Nominal Voltage 600V AC
Number of Contacts 4
Number of Positions 4
Number of Power Positions 4
Number of Rows 1
Operating Temperature Range -67 – 221
Operating Voltage 600
Orientation Right Angle
Package Quantity 250
Packaging Bag
Packaging Method Bag & Box
Packaging Quantity 250
Panel Mount Feature Without
PCB Mount Alignment No (Without)
PCB Mount Retention Without
Pin shape Rectangular
Pins per row 4
Plating Thickness 80um
Primary Product colour Yellow
Radiation Hardening No
Reach SVHC Compliant No
RoHS Compliant Yes
Sealable No
Series MTA-156
Shrouded No (Without)
Strain Relief Yes (With)
Termination IDC
Termination Method to Wire & Cable Insulation Displacement (IDC)
Type SIL socket (standard)
UL Flammability Rating UL 94V-2
UL Rating Recognized
Underplate Material Nickel
Voltage Rating (AC) 600v
Width 18.42mm
Wire Size 20
Wire/Cable Gauge 20AWG
Wire/Cable Type Discrete
