TE Connectivity 3-640599-3 MTA-156 SIL Socket 3 Pins Standard 1 pc

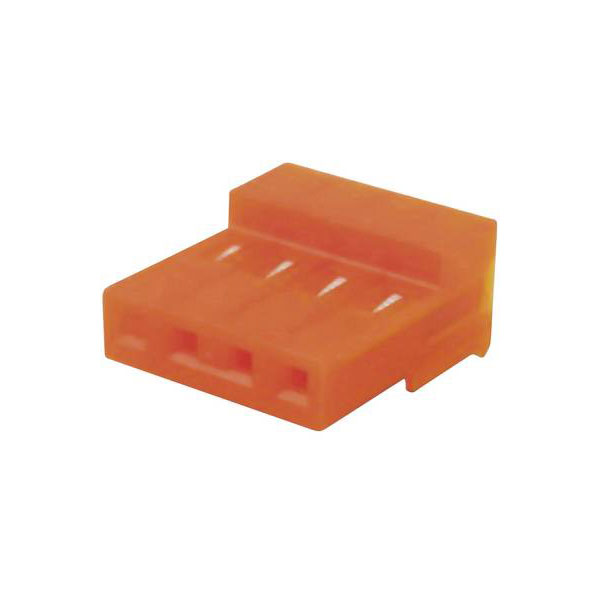

Image Representative of Range

TE Connectivity 3-640599-3 MTA-156 SIL Socket 3 Pins Standard 1 pc

TE Connectivity
Order Code:

07-4478

Brand: TE Connectivity MPN: 3-640599-3 EAN-13: 2050002849808
Qty Unit Price (Ex VAT)
20+ £0.328
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
567 in stock, despatched in 4 working days

TE Connectivity manufactures the SIL socket (standard) MTA-156 3-640599-3 with a total of 3 pins. This socket is ideal for applications requiring secure electrical connections in compact spaces. It is commonly used in electronics assemblies, offering reliable performance and easy connectivity in various industrial and consumer electronics applications.
AWG (min.) 18
AWG max. 18
Board contact surface Tin plated
Case Material Polyamide
Connection Cut & Clip
Connector contact surface Tin plated
Connector system wire-to-board
Connector Type Socket, right angle
Contact Material Copper alloy
Dim (L x W x H) 9.78 x 18.42 x 11.89 mm
Factory colour Orange
Height 11.89mm
Industrial packaging No
Insulation Material Polyamide
Length 9.78mm
max. cross section 0.90mm²
Max. temperature +105°C
Min. cross section 0.80mm²
Min. temperature -55°C
Misc Attribute MTA-156
Nominal Current 7A
Nominal current - rounded value 7A
Nominal Voltage 600V AC
Number of Rows 1
Pin shape Rectangular
Pins per row 3
Series MTA-156
Total number of pins 3
Type SIL socket (standard)
Width 18.42mm
