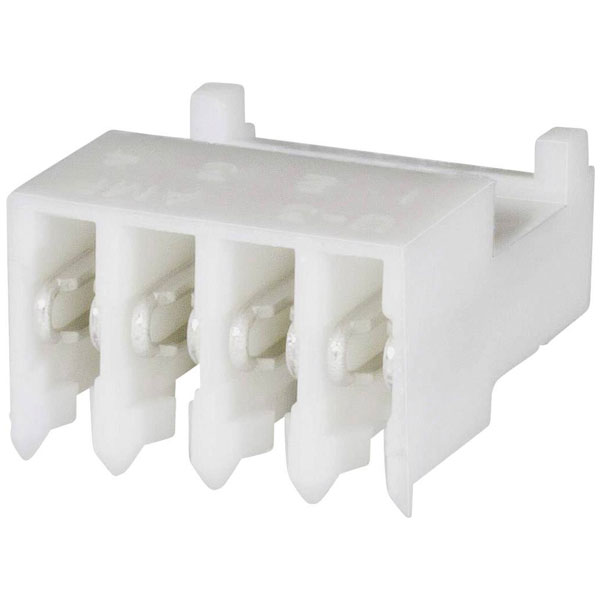

TE Connectivity 3-640441-4 MTA-100 SIL Socket 4 Pins 1 pc

TE Connectivity
Order Code:

07-4471

Brand: TE Connectivity MPN: 3-640441-4 EAN-13: 2050002840928
Qty Unit Price (Ex VAT)
20+ £0.311
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
287 in stock, despatched in 4 working days

The TE Connectivity SIL socket (standard) MTA-100 has a total of 4 pins and is listed under part number 3-640441-4. It is designed for reliable electrical connections in compact spaces, commonly used in electronic and industrial applications for circuit board connections. This standard SIL socket is valued for its durability and precise fit, ensuring stable and efficient performance.
No. of Rows 2.54mm
No. of Ways 4
AWG (min.) 24
AWG max. 24
Board contact surface Tin plated
Case Material Polyamide
Centerline (Pitch) 2.54mm
Circuit Application Signal
Compatible With Agency/Standards Products CSA
Compatible With Approved Standards Products UL E28476
Connection Cut & Clip
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Receptacle
Connector contact surface Tin plated
Connector Height .52
Connector Length .4
Connector Mounting Type Cable Mount (Free-Hanging)
Connector Product Type Connector Assembly
Connector System wire-to-wire
Connector Type Socket, right angle
Connector Width .275
Contact Current Rating (Max) 5
Contact Finish Copper alloy
Contact Mating Area Plating Material Tin (Sn)
Contact Retention Within Housing With
Contact Type Receptacle
Contact Underplating Material Nickel
Contacts Preloaded Yes
Dim (L x W x H) 6.99 x 13.21 x 10.16 mm
Factory colour White
Height 10.16mm
Housing Material Nylon 6/6
Industrial packaging No
Insulation Material Polyamide
Length 6.99mm
Mating Alignment Without
Mating Retention With
Mating Retention Type Locking Ramp
max. cross section 0.20mm²
Max. temperature +105°C
Min. cross section 0.20mm²
Min. temperature -55°C
Misc Attribute MTA-100
Nominal Current 5A
Nominal current - rounded value 5A
Nominal Voltage 250V AC
Number of Positions 4
Number of Rows 1
Operating Temperature Range -67 – 221
Operating Voltage 250
Packaging Method Bag/Box
Packaging Quantity 500
Pin shape Rectangular
Pins per row 4
Primary Product Color White
Sealable No
Series MTA-100
Shielded No
Termination Method to Wire & Cable Insulation Displacement (IDC)
Type SIL socket (standard)
UL Flammability Rating UL 94V-2
UL Rating Recognized
Width 13.21mm
Wire Size 24
