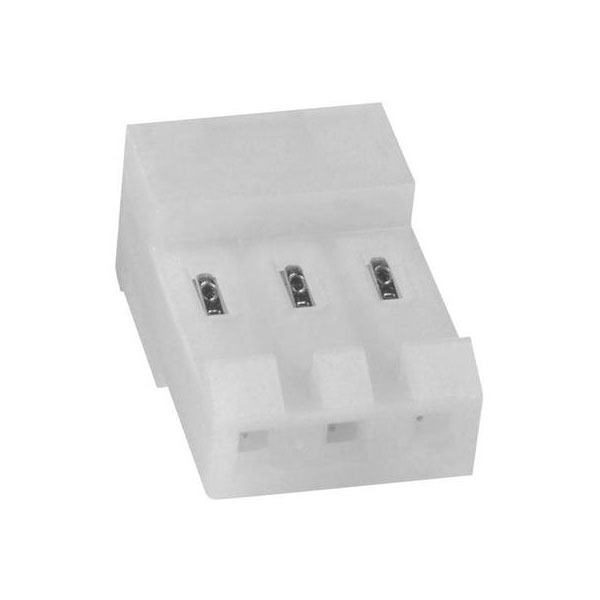

TE Connectivity 3-640429-3 MTA-156 SIL Socket 3 Pins Standard

TE Connectivity's SIL socket (standard) MTA-156 with part number 3-640429-3 features three pins and is designed for secure and reliable connections in various electronic assemblies. This connector is ideal for use in industrial control systems, telecommunications equipment, and consumer electronics where small, reliable connections are necessary. Its durable construction allows it to withstand various environmental conditions, ensuring longevity and performance in demanding applications.

Type	SIL socket (standard)
Pitch	3.9624mm
Number of Ways	3
Number of Rows	1
Mounting Type	Cable Mount (Free-Hanging)
Approvals	CSA
AWG (min.)	24
AWG max.	24
Backwall/Post Interruptions	No (Without)
Board contact surface	Tin plated
Body Material	Nylon
Case Material	Polyamide
Circuit Application	Power & Signal
Color	White
Colour	White
Compatible Insulation Diameter Range	.095
Compatible With Agency/Standards Products	CSA
Compatible With Approved Standards Products	UL E28476
Connection	Cut & Clip
Connector & Contact Terminates To	Wire & Cable
Connector & Housing Type	Receptacle
Connector contact surface	Tin plated
Connector Height	.355
Connector Length	.468
Connector Product Type	Connector Assembly
Connector System	wire-to-board
Connector Type	Socket, right angle
Contact Base Material	Copper Alloy
Contact Current Rating	7a
Contact Current Rating (Max)	7
Contact Gender	Female
Contact Layout	Inline
Contact Material	Copper alloy
Contact Mating Area Plating Material	Tin (Sn)
Contact Mating Area Plating Material Thickness	80 – 200
Contact Plating	Tin
Contact Retention	Yes (With)
Contact Retention Within Housing	With
Contact Type	Receptacle
Contact Underplating Material	Nickel
Contact Underplating Material Thickness	.762
Current Rating	7a
Depth	9.02mm
Dimensions	(L x W x H) 9.02 x 18.42 x 11.89 mm
Flammability Rating	UL94 V-2
Gender	Receptacle
Glow Wire Rating	Standard Part - Not Glow Wire
Height	11.89mm
Housing Color	White
Housing Material	Nylon
Industrial packaging	No
Insulation Diameter	0.095inch
Insulation Material	Polyamide
Length	9.02mm
Mating Alignment	Without
Mating Retention	With
Mating Retention Type	Locking Ramp
Max Operating Temperature	221°C
Max Voltage Rating (AC)	600v
max. cross section	0.20mm²
Max. temperature	+105°C
Min Operating Temperature	-67°C
Min. cross section	0.20mm²
Min. temperature	-55°C
Misc Attribute	MTA-156
Mount	Free Hanging, Cable
Nominal Current	7A
Nominal current - rounded value	7A
Nominal Voltage	600V AC
Number of Contacts	3
Number of Positions	3
Number of Power Positions	3
Operating Temperature Range	-67 – 221
Operating Voltage	600
Orientation	Right Angle
Package Quantity	500
Packaging	Bag
Packaging Method	Bag & Box
Packaging Quantity	500
Panel Mount Feature	Without
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pin shape	Rectangular
Pins per row	3
Plating Thickness	80um
Primary Product colour	White
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No
Series	MTA-156
Strain Relief	Yes (With)
Termination	IDC
Termination Method to Wire & Cable	Insulation Displacement (IDC)
UL Flammability Rating	UL 94V-2
UL Rating	Recognized
Underplate Material	Nickel
Voltage Rating	600v
Voltage Rating (AC)	600v
Width	18.42mm
Wire Size	24
Wire/Cable Gauge	24AWG
Wire/Cable Type	Discrete
