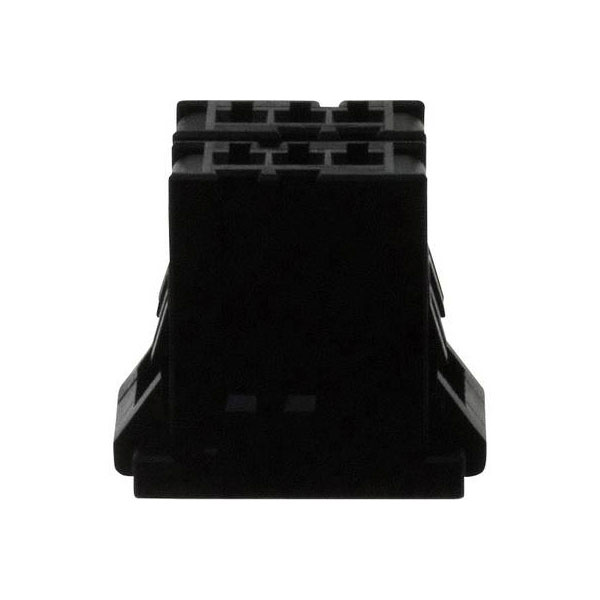

TE Connectivity 3-178127-6 Dynamic 3000 Socket Housing 6 Pins

TE Connectivity manufactures the Socket Housing Cable from the DYNAMIC 3000 Series, identified by part number 3-178127-6. This connector features a total of 6 pins and is typically used in industrial and electronic equipment applications. Its design supports secure and reliable connections, ensuring efficient performance in high-demand settings.

Type	Socket housing cable
Pitch	3.81mm
Number of Ways	6
Number of Rows	2
Mounting Type	Cable Mount (Free-Hanging)
Mounting Direction	Straight
Approvals	UL
Case Material	Polyester
Circuit Application	Power & Signal
Code	XX
Color	Black
Colour	Black
Connector & Contact Terminates To	Wire & Cable
Connector & Housing Type	Receptacle
Connector contact surface	Tin plated
Connector Product Type	Housing
Connector System	wire-to-board
Connector Type	Socket, straight
Contact Type	Female Socket
Depth	22.8mm
Dimensions	(L x W x H) 14.77 x 24.76 x 22.8 mm
Flammability Rating	UL94 V-0
Gender	Female
Height	22.8mm
Housing Color	Black
Industrial packaging	No
Insulation Material	Polyester
Length	14.77mm
Mating Retention	With
Max Voltage Rating (AC)	250v
Maximum Operating Temperature	221°C
Maximum Temperature	+105°C
Min. temperature	-55°C
Minimum Operating Temperature	-67°C
Misc Attribute	D-3100m
Mount	Free Hanging, Cable
Nominal Current	15A
Nominal current - rounded value	15A
Number of Contacts	6
Number of Positions	6
Operating Temperature Range	-67 – 221
Orientation	Straight
Package Quantity	200
Packaging	Bag
Pin shape	Rectangular
Pins per row	3
Preloaded	No
Primary Product colour	Black
Primary Type	CONNECTOR
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	7.62mm
Row-to-Row Spacing	.299
Sealable	No
Selectively Loaded	No (Without)
Series	DYNAMIC 3000 Series
Termination	Crimp
Termination Method to Wire & Cable	Crimp
VDE Tested	No
Width	24.76mm
Wire/Cable Gauge	16AWG
