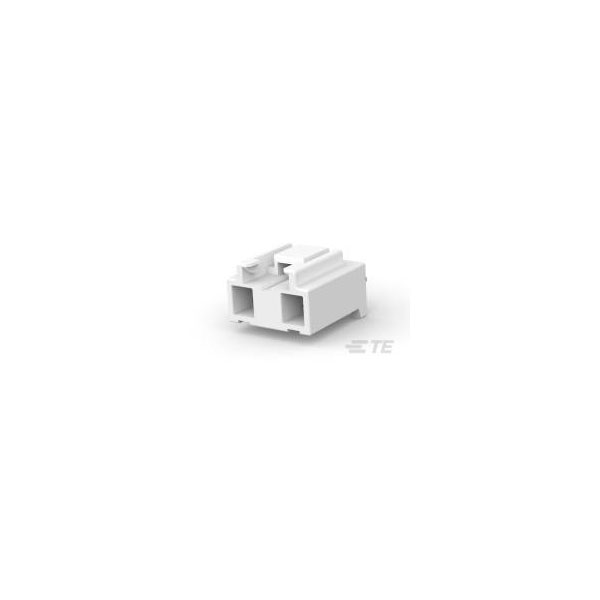

TE Connectivity's 3-176976-1 is a universal power system connector. It features robust connectivity solutions for reliable electrical and mechanical connections. Typically used in industrial and residential power systems, it ensures secure and efficient electrical distribution.
| Type |
PCB Headers & Receptacles |
| Pitch |
7.9 mm |
| Number of Ways |
3 |
| Number of Rows |
1 |
| Mounting Type |
Board Mount |
| Mounting Direction |
Vertical |
| Circuit Application |
Power |
| Color |
Natural |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Contact Load Condition |
Selectively Loaded |
| Connector Height |
.551 |
| Connector Length |
.513 |
| Connector Product Type |
Connector Assembly |
| Connector System |
Wire-to-Board |
| Connector Width |
.39 |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
11 |
| Contact Layout |
Inline |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Mating Area Plating Material Finish |
Bright |
| Contact Mating Area Plating Material Thickness |
39.37 |
| Contact Plating |
Tin |
| Contact Shape & Form |
Rectangular |
| Contact Type |
Tab |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
31.49 – 70.86 |
| Current Rating |
12a |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Header Type |
Fully Shrouded |
| Housing Color |
Natural |
| Housing Material |
Nylon 6/6 GF |
| Mating Alignment |
Without |
| Mating Retention |
With |
| Mating Retention Type |
Locking Latch |
| Mating Tab Thickness |
.025 |
| Mating Tab Width |
.047 |
| Maximum Operating Temperature |
221 |
| Misc Attribute |
TE AMP AMP Universal Power System |
| Mount |
Through Hole |
| Number of Columns |
3 |
| Number of Contacts |
2 |
| Number of Positions |
2 |
| Number of Positions Loaded |
2 |
| Number of Power Positions |
2 |
| Operating Temperature Range |
-22 – 221 |
| Operating Voltage |
300 |
| Orientation |
Straight |
| Package Quantity |
400 |
| Packaging |
Loose Piece |
| Packaging Method |
Bag |
| Packaging Quantity |
400 |
| Packaging Type |
Bag |
| Panel Mount Feature |
Without |
| PCB Connector Type |
PCB Mount Header |
| PCB Contact Termination Area Plating Material |
Tin |
| PCB Contact Termination Area Plating Material Finish |
Bright |
| PCB Contact Termination Area Plating Material Thickness |
39.37 |
| PCB Mount Alignment |
Without |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Kinked |
| PCB Mounting Orientation |
Vertical |
| PCB Thickness (Recommended) |
.063 |
| Primary Product colour |
Natural |
| Primary Type |
Rectangular |
| Radiation Hardening |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
Universal Power, AMP |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.15 |
| UL Flammability Rating |
UL 94V-0 |
| Voltage Rating |
600v |
