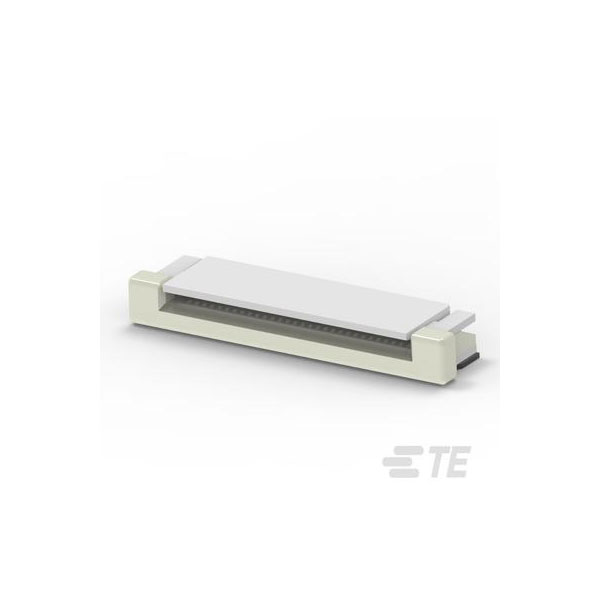

TE Connectivity's 3-1734839-1 is a female FFC/FPC connector with 31 contacts arranged in a single row.
It is designed for use in tight-space applications, ensuring secure and reliable connections.
The connector supports flexible printed circuits, often utilised in consumer electronics and automotive systems.
Its robust design makes it suitable for high-density and compact electronic devices.
| Actuator Color |
Beige |
| Actuator Material |
Thermoplastic |
| Circuit Application |
Signal |
| Connector System |
Flex-to-Board |
| Contact Current Rating |
500mA |
| Contact Location |
Top |
| Contact Material |
Bronze |
| Contact Plating |
Gold |
| Current Rating |
500mA |
| Depth |
5.1mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Female |
| Height |
2.05mm |
| Housing Color |
Natural |
| Length |
20.93mm |
| Mating Alignment |
Yes (With) |
| Max Operating Temperature |
85°C |
| Min Operating Temperature |
-40°C |
| Mount |
Surface Mount |
| Number of Contacts |
31 |
| Number of Positions |
31 |
| Number of Rows |
1 |
| Operating Supply Voltage |
250v |
| Orientation |
Right Angle |
| Package Quantity |
2000 |
| Packaging |
Tape and Reel |
| PCB Mount Alignment |
No (Without) |
| PCB Mount Retention |
With |
| PCB Mounting Orientation |
Right Angle |
| Pitch |
0.5mm |
| Plating |
Gold |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No (Without) |
| Shielding |
Unshielded |
| Shrouded |
Yes (With) |
| Termination |
SMD/SMT |
| Voltage Rating |
250v |
| Width |
5.1mm |
| Wire/Cable Type |
Flat Flex |
