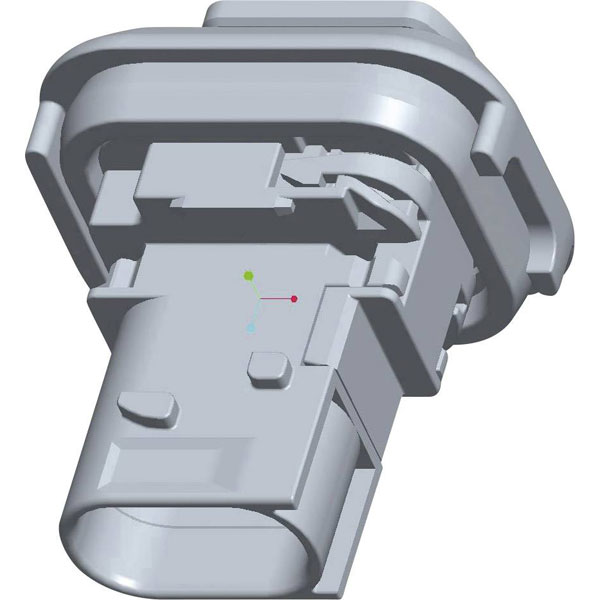

The TE Connectivity Socket Housing PCB HDSCS, MCP 3-1703843-1 is designed to accommodate three contact pins, ensuring secure electrical connections. This component is typically used for PCB mounting in automotive and industrial applications, offering reliable performance in harsh environments. Manufactured by TE Connectivity, it is known for its durability and ease of installation in various electronic assemblies.
| Pitch |
0.157inch |
| No. of Rows |
1 |
| No. of Ways |
3 |
| AWG (min.) |
17 |
| AWG max. |
17 |
| Body Material |
PBT |
| Case Material |
Thermoplastic material |
| Circuit Application |
Signal |
| Code |
C |
| Color |
Green |
| Connection |
Type C CEE 7/16 plug 1.6 mm |
| Connector System |
automotive |
| Connector Type |
Plug, straight |
| Contact Type |
Tab |
| Dim |
(L x W x H) 29.8 x 47.05 x 37.5 mm |
| ELV |
Compliant |
| Factory colour |
Green |
| Flammability Rating |
UL94 V-0 |
| Height |
37.5mm |
| Hybrid Connector |
No |
| Industrial packaging |
No |
| Insulation Material |
Thermoplastic material |
| IP Rating |
IP67 |
| Length |
29.8mm |
| Mating Tab Width |
0.063inch |
| Max Operating Temperature |
140°C |
| max. cross section |
1mm² |
| Max. temperature |
+140°C |
| Min Operating Temperature |
-40°C |
| Min. cross section |
1mm² |
| Min. temperature |
-40°C |
| Misc Attribute |
HDSCS, MCP |
| Mount |
Panel |
| Nominal Voltage |
42V DC |
| Number of Positions |
3 |
| Number of Rows |
1 |
| Package Quantity |
450 |
| Packaging |
Carton |
| Pin shape |
Rectangular |
| Pins per row |
3 |
| Polarized |
Yes |
| Ratings |
IP67 |
| RoHS Compliant |
Yes |
| Sealable |
Yes (With) |
| Series |
HDSCS, MCP |
| Serviceable |
Yes |
| Strain Relief |
Add By Accessory |
| Termination |
Crimp |
| Type |
Socket housing PCB |
| Width |
47.05mm |
