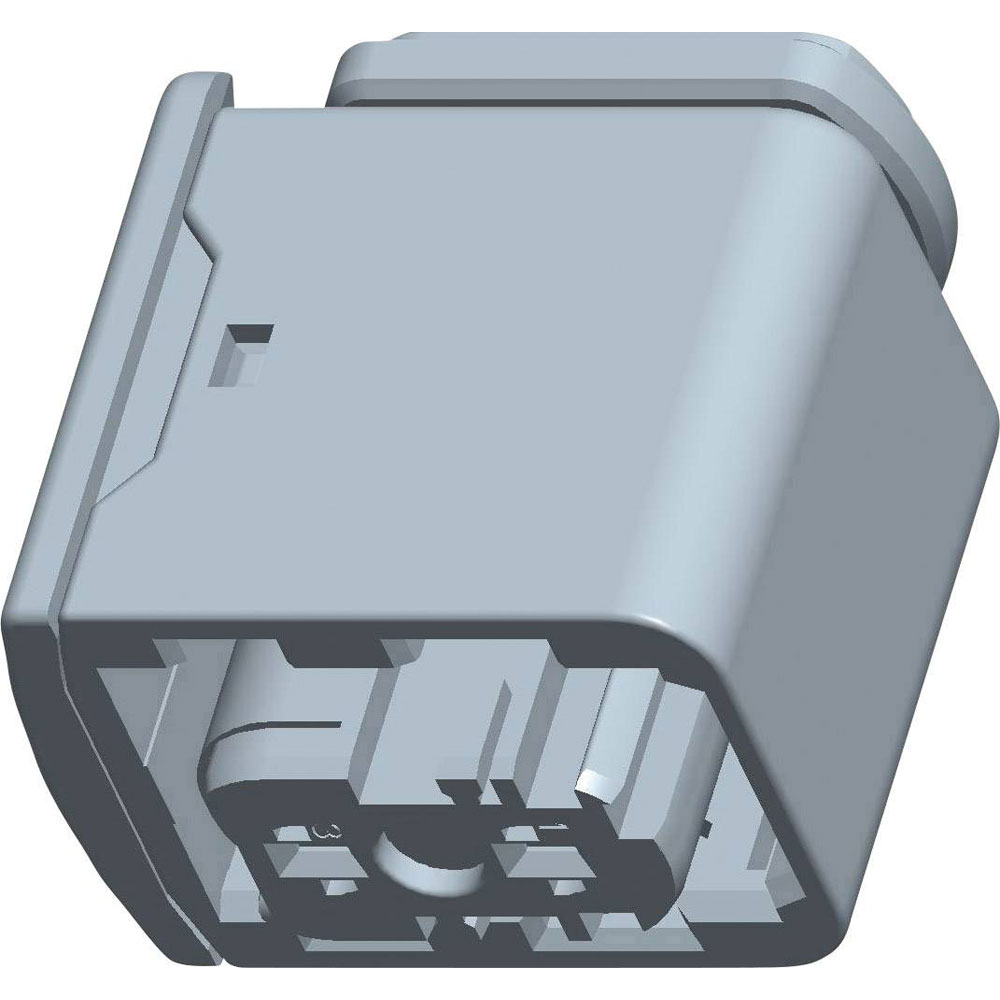

TE Connectivity 3-1418448-2 HDSCS Socket Housing Cable 3 Pins

TE Connectivity manufactures the Socket Housing Cable HDSCS, MCP with a total of 3 pins, model number 3-1418448-2. This component is typically used in automotive and industrial applications for secure electrical connections. Its robust design ensures reliable performance in harsh environments.

Type	Socket, straight
Number of Contacts	3
Gender	Female
Number of Rows	1
Body Material	PBT
Case Material	Thermoplastic material
Circuit Application	Signal
Code	C
Colour	Black
Connection	Type C CEE 7/16 plug 1.6mm
Connector contact surface	Tin plated
Connector System	automotive
Dimensions	(L x W x H) 18.5 x 36 x 30.75 mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	30.75mm
Housing Color	Black
Hybrid Connector	No
Industrial packaging	No
Insulation Material	Thermoplastic material
IP Rating	IP67
Length	18.5mm
Mating Tab Width	0.063inch
Max Operating Temperature	140°C
max. cross section	1.50mm²
Max. temperature	+140°C
Min Operating Temperature	-40°C
Min. cross section	1.50mm²
Min. temperature	-40°C
Misc Attribute	HDSCS, MCP
Mount	Cable
Nominal Voltage	42V DC
Orientation	Straight
Package Quantity	700
Packaging	Carton
Pin shape	Rectangular
Pins per row	3
Pitch	0.157inch
Polarized	Yes
Ratings	IP67
RoHS Compliant	Yes
Sealable	Yes (With)
Series	HDSCS, MCP
Serviceable	Yes
Strain Relief	No (Without)
Width	36mm
Wire Gauge (AWG)	16
