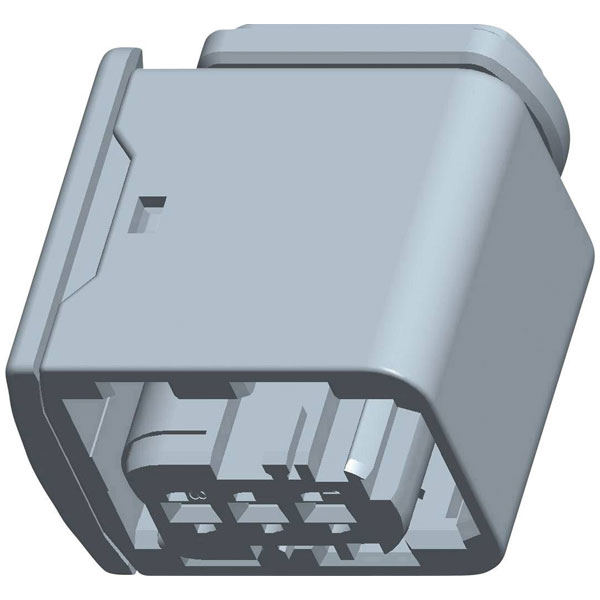

TE Connectivity 3-1418448-1 HDSCS Socket Housing 3 Pins MCP

TE Connectivity
Order Code:

07-4331

Brand: TE Connectivity MPN: 3-1418448-1 EAN-13: 2050002961166
Qty Unit Price (Ex VAT)
5+ £1.21
10+ £1.11
100+ £1.03
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
70 in stock, despatched in 4 working days

TE Connectivity manufactures the HDSCS socket housing cable, part number 3-1418448-1, featuring a total of 3 pins. It is designed for secure and reliable electrical connections in automotive and industrial applications. The durable construction ensures long-lasting performance in harsh environments.
Type Socket, straight
Number of Contacts 3
Number of Rows 1
Body Material PBT
Case Material Thermoplastic material
Circuit Application Signal
Code C
Colour Black
Connection Type C CEE 7/16 plug 1.6mm
Connector contact surface Tin plated
Connector System automotive
Contact Type Female Socket
Dimensions (L x W x H) 18.5 x 36 x 30.75 mm
ELV Compliant
Flammability Rating UL94 V-0
Height 30.75mm
Housing Color Black
Hybrid Connector No
Industrial packaging No
Insulation Material Thermoplastic material
IP Rating IP67
Length 18.5mm
Mating Tab Width 0.063inch
Max Operating Temperature 140°C
max. cross section 1.50mm²
Max. temperature +140°C
Min Operating Temperature -40°C
Min. cross section 1.50mm²
Min. temperature -40°C
Misc Attribute HDSCS, MCP
Mount Free Hanging
Nominal Voltage 42V DC
Package Quantity 700
Packaging Carton
Pin shape Rectangular
Pins per row 3
Pitch 0.157inch
Polarized Yes
Ratings IP67
RoHS Compliant Yes
Sealable Yes (With)
Series HDSCS, MCP
Serviceable Yes
Strain Relief No (Without)
Termination Crimp
Width 36mm
Wire Gauge (AWG) 16
