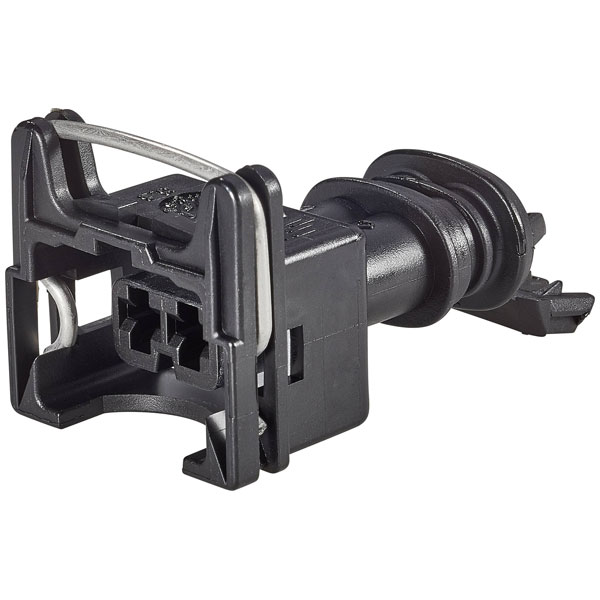

TE Connectivity 282189-1 J-P-T Socket Housing 2 Pins 5 Mm Spacing

TE Connectivity
Order Code:

07-4245

Brand: TE Connectivity MPN: 282189-1 EAN-13: 2050003865180
Qty Unit Price (Ex VAT)
10+ £0.561
100+ £0.482
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,413 in stock, despatched in 4 working days

TE Connectivity's socket housing cable J-P-T, model 282189-1, features 2 pins with a contact spacing of 5 mm. This component, also known by identifiers such as Tyco and Tyco Electronics, is typically used in electrical connectors, ensuring reliable connectivity in various applications. Its robust design is suitable for secure and efficient cable-to-cable or cable-to-board connections.
Type Socket, straight
Number of Contacts 2
Gender Female
Number of Rows 1
Case Material Polyamide
Circuit Application Signal
Colour Black
Connection Crimp
Connection Angle 180°
Connector contact surface Tin plated
Connector System automotive
Contact Plating Tin
Contact Type Female Socket
Cross Section 5mm
Current Rating 20a
Depth 37.5mm
Dimensions (L x W x H) 23.8 x 22 x 37.5 mm
Height 37.5mm
Housing Color Black
Hybrid Connector No
Industrial packaging No
Length 23.8mm
Mating Tab Width 0.118inch
Max Operating Temperature 125°C
Max Voltage Rating (DC) 24v
max. cross section 2.5mm²
Max. temperature +125°C
Min Operating Temperature -30°C
Min. cross section 0.5mm²
Min. temperature -30°C
Mount Free Hanging
Orientation Straight
Package Quantity 600
Packaging Bag
Pin shape Rectangular
Pins per row 2
Pitch 5mm
Polarized Yes
Primary Type Rectangular
Reach SVHC Compliant No
RoHS Compliant Yes
Sealable Yes (With)
Series J-P-T
Serviceable No
Strain Relief No (Without)
Termination Crimp
Width 22mm
