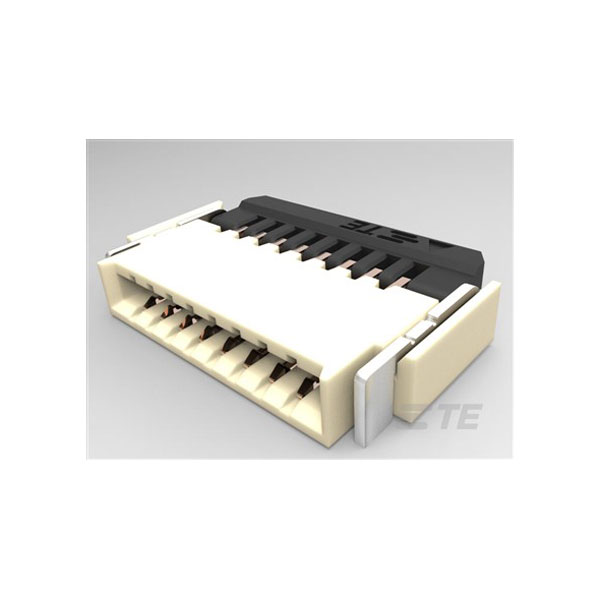

TE Connectivity 2328702-8 FFC FPC Female Connector 8 Pin 0.5mm Pitch Back Flip

MPN: 2328702-8
Brand: TE Connectivity
Order Code: 14-2863
Country of Origin: China

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
28000+	£0.094

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 28000

Despatched within 5 working days - 52,000 in stock

Product Details
Quick Quote

The TE Connectivity 2328702-8 is an FFC/FPC female connector.

It features an 8-pin configuration with a 0.5 mm pitch and back flip design.

This connector is ideal for flexible printed circuit and flat flexible cable applications.

It is typically used in consumer electronics, data communications, and industrial equipment.

Type	FPC Connectors
Centerline (Pitch)	12.7mm
Connector & Contact Terminates To	Printed Circuit Board
Connector Height	0.039
Connector Length	6
Connector Product Type	Connector Assembly
Connector System	Wire-to-Board
Contact Base Material	Copper Alloy
Contact Current Rating (Max)	0.5
Contact Layout	Inline
Contact Mating Area Plating Material	Gold Flash
Contact Shape & Form	Standard Flat
Housing Material	LCP
Mating Alignment	With
Mating Retention Type	Zero Insertion Force (ZIF)
Military Spec	True
Number of Positions	8
Number of Rows	1
Operating Temperature Range	-40 – 185
Operating Voltage	50
Packaging Method	Tape & Reel
PCB Connector Type	PCB Mount Receptacle
PCB Contact Termination Area Plating Material	Gold
PCB Mount Orientation	Right Angle
Primary Product colour	Natural
REACH	Compliant
ROHS	Yes
Termination Method to PCB	Surface Mount
