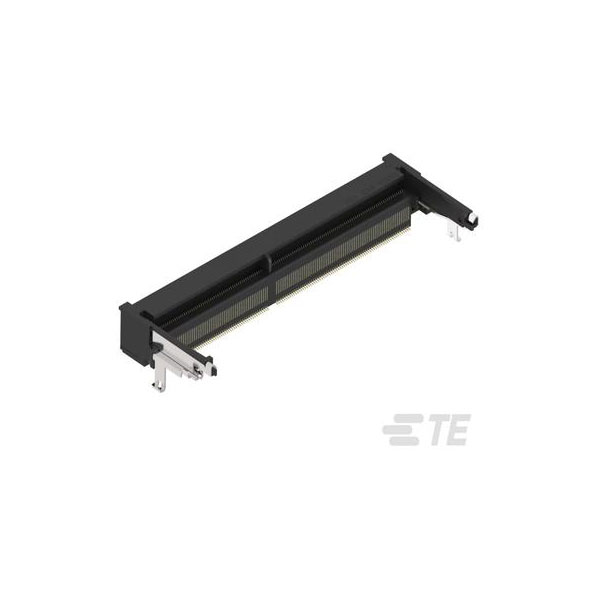

TE Connectivity 2309411-1 Board Stacking Connector Male Unshrouded 260 Positions

Inc VAT

Qty	Unit Price (Ex VAT)
250+	£1.50

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 250

Despatched within 5 working days - 4,500 in stock

TE Connectivity's 2309411-1 is a male unshrouded board stacking connector featuring 260 positions.

It is designed to provide reliable high-density connections between circuit boards.

This connector is typically used in telecommunications, data communication equipment, and industrial applications.

Its robust design ensures high performance in demanding environments.

Type	SO DIMM Sockets
Number of Positions	260
Mounting Angle	Horizontal
Pitch	0.32200000000000001
Centerline (Pitch)	0.508mm
Circuit Application	Power
Connector & Contact Terminates To	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector Profile	High
Connector System	Cable-to-Board
Contact Base Material	Copper Alloy
Contact Current Rating (Max)	.5
Contact Gender	FEMALE
Contact Mating Area Plating Material	Gold Flash
Contact Underplating Material	Nickel
Housing Material	High Temperature Thermoplastic
Mating Alignment Type	Standard Keying
Mounting Style	RIGHT ANGLE
Number of Rows	2
Operating Temperature Range	-67 – 185
Packaging Method	Tape & Reel
Packaging Quantity	500
PCB Contact Termination Area Plating Material	Gold Flash
PCB Mount Retention	With
PCB Mount Retention Type	Solder Peg
Termination Method to PCB	Surface Mount
Termination Type	SURFACE MOUNT
Total Number of Contacts	260
UL Flammability Code	94V-0
UL Flammability Rating	UL 94V-0
