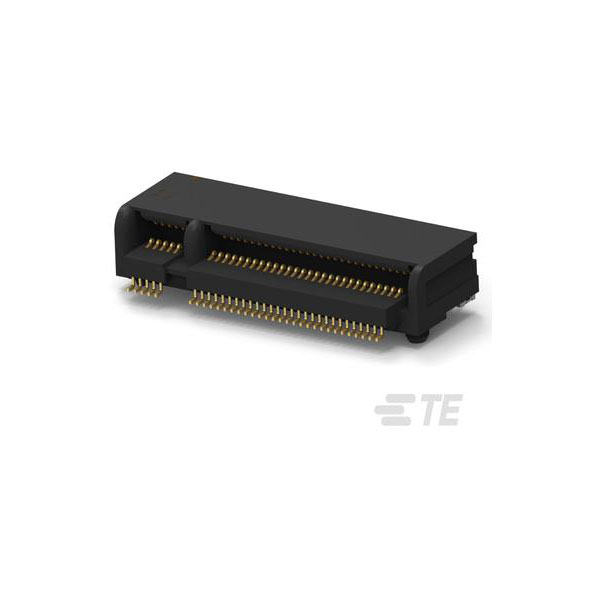

TE Connectivity 2199119-3 Card Edge Connector 67 Contacts Dual Unshrouded

Inc VAT

Qty	Unit Price (Ex VAT)
1200+	£1.14

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1200

Available to back orderBack-order availability date - 13/08/2026

The TE Connectivity 2199119-3 is a card edge connector with 67 contacts, featuring a dual unshrouded design.

This component is known for reliable connectivity and durability.

Typically used in data communication and network applications, it ensures efficient signal transmission.

The connector’s design allows for easy integration into printed circuit boards.

Type	M.2 Connectors
Number of Positions	67
Mounting Angle	Edge
Centerline (Pitch)	0.508mm
Circuit Application	Power
Connector & Contact Terminates To	Printed Circuit Board
Connector & Keying Code	B
Connector Height	0.126
Connector Length	0.86199999999999999
Connector Mounting Type	Board Mount
Connector System	Board-to-Board
Connector Width	0.34300000000000003
Contact Base Material	Copper Alloy
Contact Current Rating (Max)	0.5
Contact Gender	FEMALE
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	15.0
Housing Material	High Temperature Thermoplastic
Mounting Style	RIGHT ANGLE
Number of Rows	2
Operating Temperature Range	-40 – 185
Operating Voltage	50
Packaging Method	Tape & Reel
PCB Contact Termination Area Plating Material	Gold Flash
PCB Contact Termination Area Plating Material Finish	Matte
PCB Mount Orientation	Right Angle
Primary Product colour	Black
Termination Method to PCB	Surface Mount
Termination Type	SURFACE MOUNT
Total Number of Contacts	67
