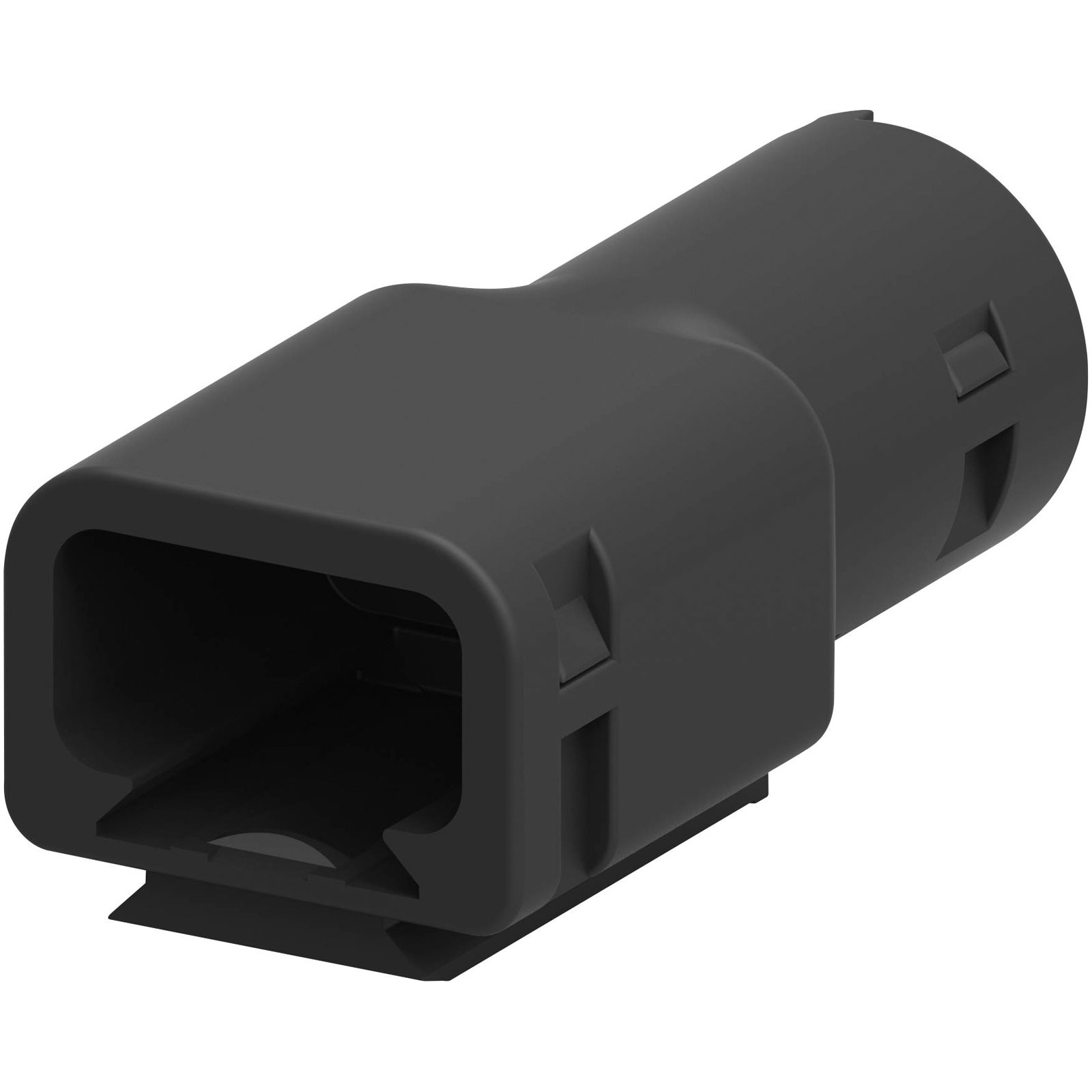

TE Connectivity 207446-3 CPC Bullet Connector Cap With Strain Relief

TE Connectivity's 207446-3 is a bullet connector protective cap designed for the CPC series of round connectors. This durable cap offers essential protection to ensure the longevity and reliability of critical electrical connections in various applications. Ideal for use in industrial, automotive, and electronic settings, it helps safeguard connections from contaminants and environmental factors.

(Ø)	40.64mm
Case material	Thermoplastic UL94V-1
Connection angle	180°
Factory colour	Black
Manufacturer part #	207446-3
Material (details)	Polyamide, UL94-1 – heat stabilized – self-extinguishing
Max. temperature	+85°C
Min. temperature	-25°C
Misc Attribute	207446-3
Nominal current	15A
Nominal current - rounded value	15A
Nominal current (details)	See data sheet
Nominal voltage	250V
RoHS-compliant	Yes
Series	CPC
Type	Bullet connector protective cap
