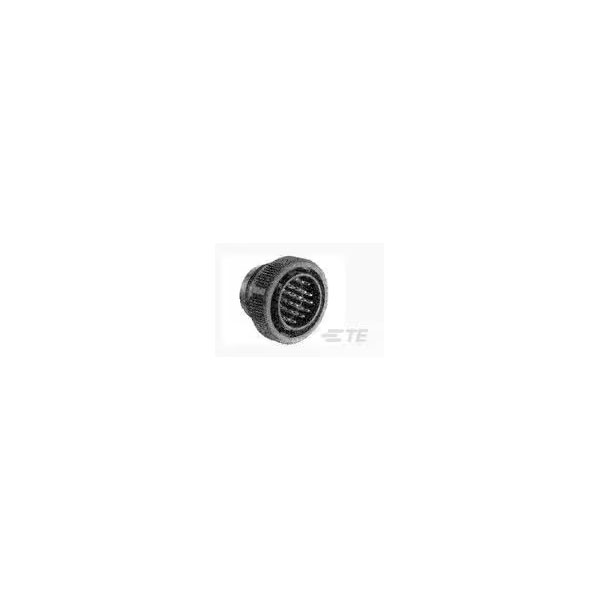

TE Connectivity 206434-1 is a circular connector featuring a male unshrouded reverse design.
It supports 11-8 AWG wire sizes, ideal for robust cable connections.
Designed for use in industrial and automotive applications, it ensures reliable power transmission.
This connector is known for its durable construction and secure mating capabilities.
| Type |
Circular Power Connectors |
| Number of Positions |
8 |
| Contact Type |
Pin |
| Mounting Type |
Cable Mount |
| Circuit Application |
Signal |
| Circular Connector Shell Size |
11 |
| Compatible Insulation Diameter Range |
.068 |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Plug |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Current Rating (Max) |
7.5 |
| Contact Gender |
MALE |
| Dielectric Withstanding Voltage |
1500VAC |
| Housing Material |
Thermoplastic |
| Insulator Colour |
BLACK |
| Insulator Material |
GLASS FILLED NYLON |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Mating Retention Type |
Threaded Coupling |
| Maximum Operating Temperature |
105 |
| Minimum Operating Temperature |
-55 |
| Mounting Style |
STRAIGHT |
| Number of Ports |
1 |
| Number of Power Positions |
0 |
| Number of Signal Positions |
8 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Packaging Method |
Bag |
| Packaging Quantity |
100 |
| Panel Mount Feature |
Without |
| Panel Mount Feature Type |
Flange |
| Reliability |
COMMERCIAL |
| Reverse Gender |
Yes |
| Sealable |
No |
| Shielded |
No |
| Termination Type |
CRIMP |
| Thread Size |
5/8-24 UNEF-2A |
| Total Number of Contacts |
8 |
| UL Flammability Rating |
UL 94V-0 |
