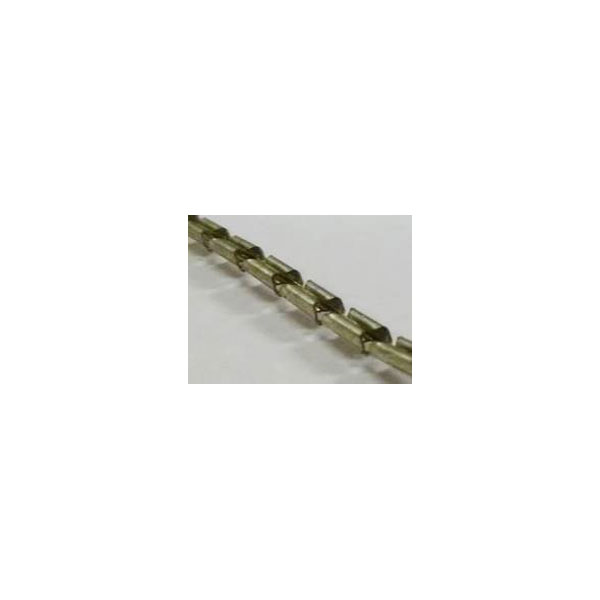

The TE Connectivity 2-330854-6 is a TERMI-POINT card edge connector designed for male unshrouded configurations.
It features a gold-plated contact interface that enhances conductivity and reduces contact resistance.
This component is typically used in computer and telecommunications equipment for reliable circuit board connections.
Ideal for situations requiring robust and durable connectors.
| Type |
Power Terminals |
| Color |
Yellow |
| Contact Base Material |
Phosphor Bronze |
| Contact Material |
Bronze |
| Contact Mating Area Plating Material |
Tin (Sn) |
| Contact Mating Area Plating Material Thickness |
100 |
| Contact Plating |
Tin |
| Contact Underplating Material |
Tin |
| ELV |
Compliant |
| Gender |
Male |
| Insulation Color |
Yellow |
| Lead Free |
Lead Free |
| Mating Tab Thickness |
.031 |
| Mating Tab Width |
.093 |
| Max Operating Temperature |
105°C |
| Min Operating Temperature |
-55°C |
| Misc Attribute |
TE AMP Miscellaneous Military Type Products |
| Mount |
Standard |
| Package Quantity |
1000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Clip/Reel |
| Packaging Quantity |
1000 |
| Packaging Type |
Tape on Full reel |
| PCB Mount Retention |
Without |
| Plating Thickness |
2.54um |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| Series |
Termi-Point |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Size |
20 |
| Wire/Cable Gauge |
20AWG |
