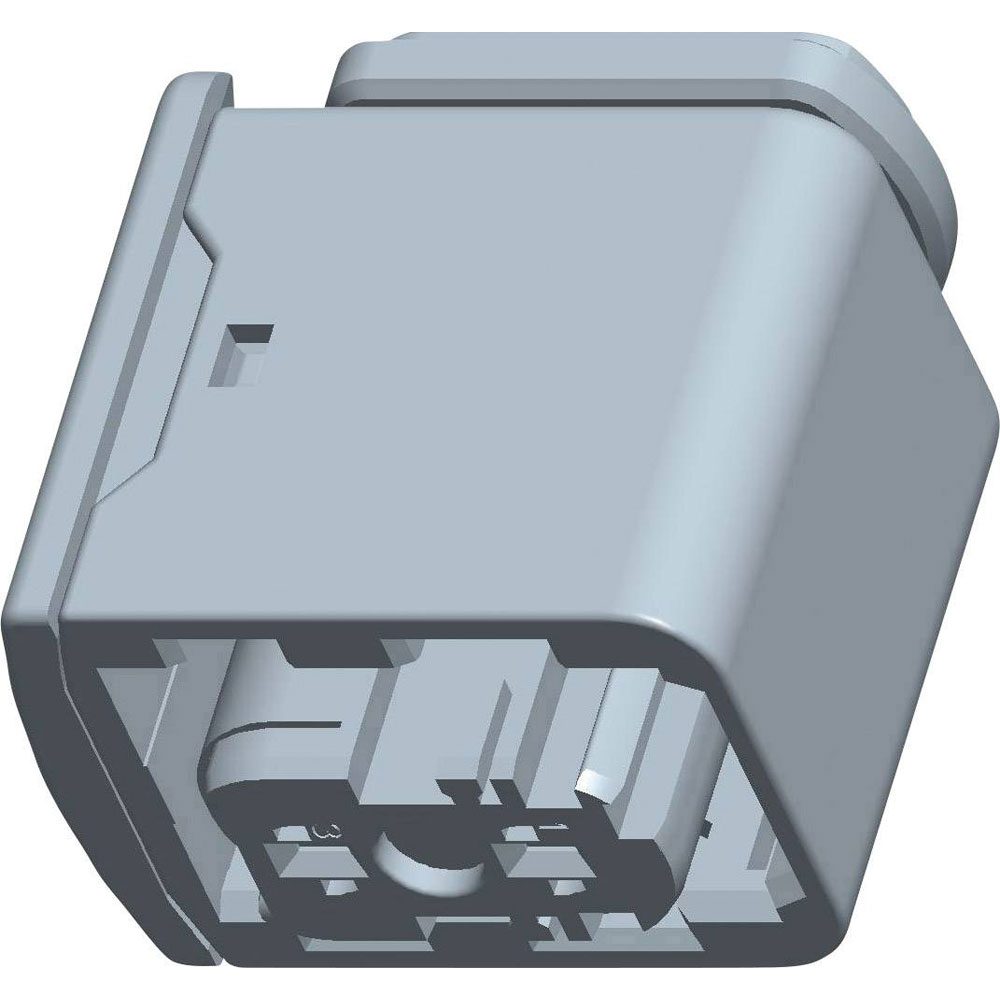

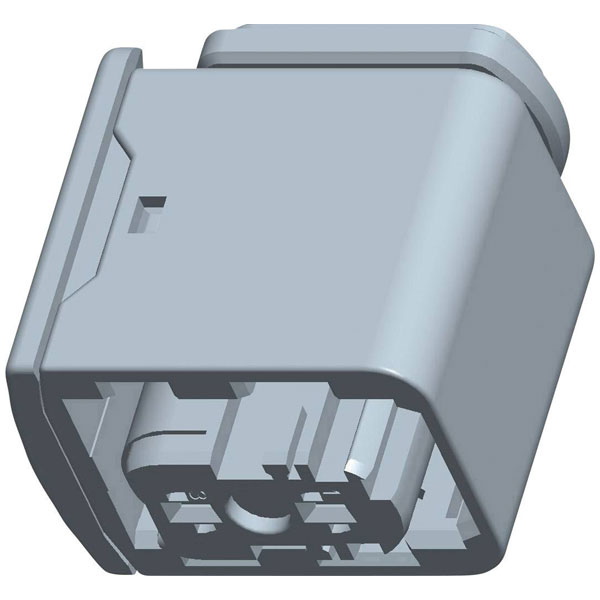

TE Connectivity 2-1703841-1 HDSCS PCB Socket Housing 2 Pins

TE Connectivity manufactures the HDSCS Socket Housing PCB, featuring MCP technology and a total of 2 pins. This component is typically used in automotive and industrial applications for secure and reliable electrical connections. It is designed to enhance connectivity performance with a robust build suitable for demanding environments.

Type	Socket housing PCB
Number of Contacts	2
Gender	Plug
Number of Rows	1
AWG (min.)	12
AWG max.	12
Body Orientation	Straight
Case Material	Thermoplastic material
Code	A
Connection	Type C CEE 7/16 plug 2.8mm
Connector System	automotive
Connector Type	Plug, straight
Dim	(L x W x H) 29.8 x 48.1 x 37.5 mm
Factory colour	Black
Height	37.5mm
Industrial packaging	No
Insulation Material	Thermoplastic material
IP Rating	IP67/IP69K
Length	29.8mm
Max Voltage Rating	42VDC
max. cross section	2.50mm²
Maximum Operating Temperature	140°C
Maximum Temperature	+140°C
Min. cross section	2.50mm²
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Misc Attribute	HDSCS, MCP
Mounting	Panel Mount
No. of Ways	2
Nominal Voltage	42V DC
Pin shape	Rectangular
Pins per row	2
Series	HDSCS, MCP
Terminal Pitch	6mm
Termination Method	Crimp
Width	48.1mm
