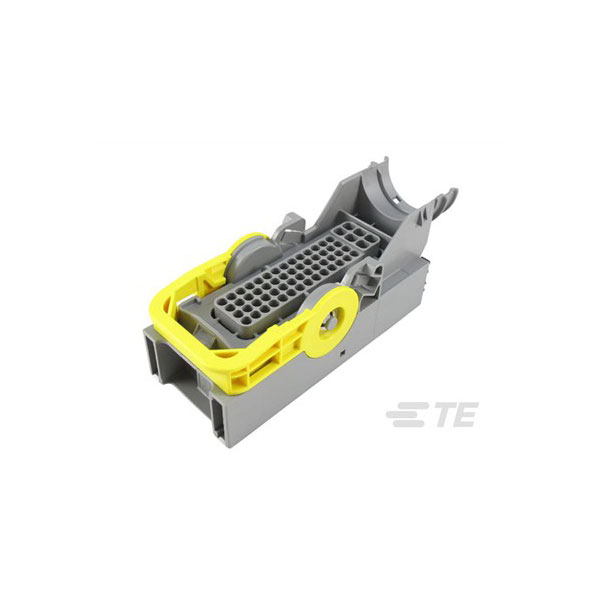

TE Connectivity 2-1418883-1 MCP Connector Female Shrouded Multiple Contact

MPN: 2-1418883-1
Brand: TE Connectivity
Order Code: 14-1837
Country of Origin: Czech Republic

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
15+	£10.56

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 15

Available to back orderBack order, lead time 4 months

Product Details
Quick Quote

The TE Connectivity 2-1418883-1 is a robust MCP connector designed for multiple contacts.

It features a female shrouded configuration, enhancing connection security.

This connector is suitable for automotive and industrial applications.

Notable for its reliability, the part supports efficient power and signal transmission.

Number of Contacts	62
Gender	Female
Number of Rows	3
Body Material	PBT
Circuit Application	Signal
Colour	Grey
Connector System	Wire-to-Wire
Contact Type	Female Socket
Depth	46mm
ELV	Compliant
Flammability Rating	UL94 HB
Height	1.732inch
Housing Color	Grey
Hybrid Connector	Yes
Insulation Material	PBT
Length	120.5mm
Mating Tab Width	0.063inch
Max Operating Temperature	248°C
Min Operating Temperature	-40°C
Mount	Free Hanging
Orientation	Straight
Package Quantity	117
Packaging	Box
Pitch	0.157inch
Polarized	Yes
Primary Type	CONNECTOR
Ratings	IP67
RoHS Compliant	Yes
Row Spacing	0.1inch
Sealable	Yes (With)
Series	MCP
Serviceable	Yes
Strain Relief	Yes (With)
Termination	Crimp
Width	1.811inch
