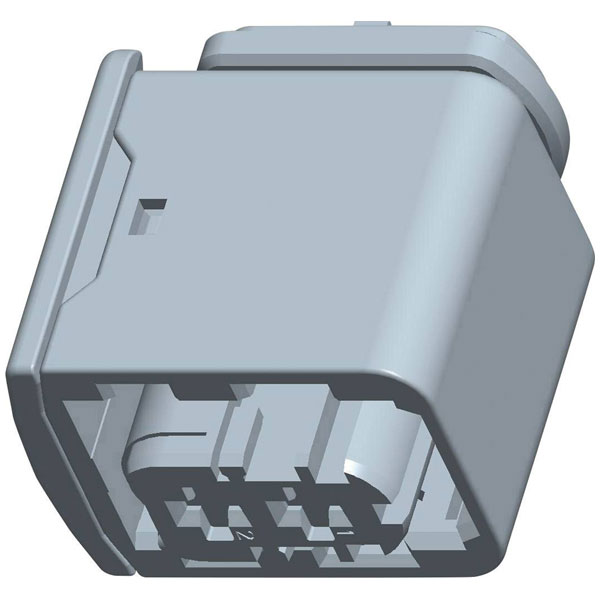

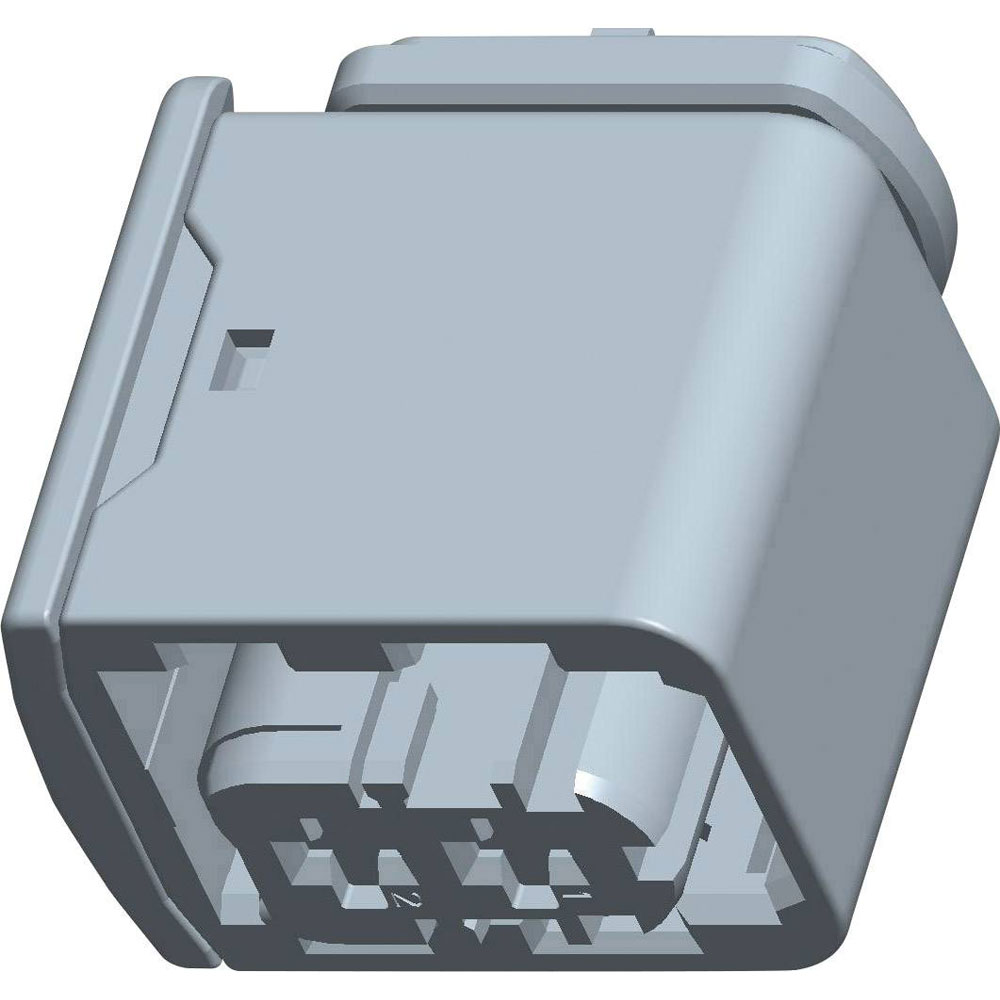

TE Connectivity 2-1418483-1 HDSCS Socket Housing 2 Pins 1 pc

TE Connectivity manufactures the socket housing cable HDSCS, MCP with a total of 2 pins, identified by part number 2-1418483-1. This durable and reliable connector is designed for use in automotive and industrial applications, offering secure and robust connections. Its compact and sturdy design makes it ideal for environments requiring weather-resistant electrical connections.

Type	Socket, straight
Number of Contacts	2
Gender	Socket
Number of Rows	1
Case Material	Thermoplastic material
Code	B
Colour	Grey
Connection	Type C CEE 7/16 plug 2.8mm
Connector contact surface	Tin plated
Connector System	automotive
Contact Gender	FEMALE
Dimensions	(L x W x H) 18.5 x 36 x 31.25 mm
Height	31.25mm
Industrial packaging	No
Insulation Material	Thermoplastic material
IP Rating	IP67
Length	18.5mm
max. cross section	2.50mm²
Maximum Operating Temperature	140
Maximum Temperature	+140°C
Maximum Wire Size AWG	12
Min. cross section	2.50mm²
Min. temperature	-40°C
Minimum Operating Temperature	-40
Misc Attribute	HDSCS, MCP
Nominal Voltage	42V DC
Pin shape	Rectangular
Pins per row	2
Series	HDSCS, MCP
Total Number of Contacts	2
UL Flammability Code	94V-0
Width	36mm
Wire Gauge (AWG)	12
