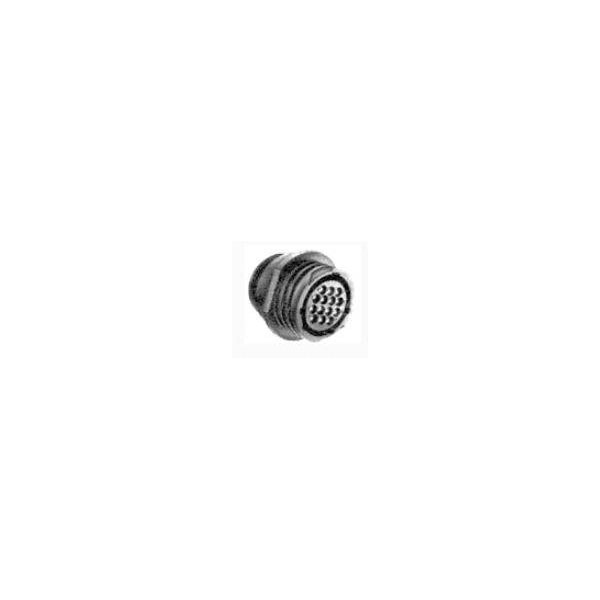

TE Connectivity 183079-1 is a standard circular connector.
This female unshrouded connector features contacts suitable for robust electrical connections.
It is typically used in industrial and automotive applications for efficient power transmission.
Its reliable design ensures secure and durable engagements in various challenging environments.
| Type |
Bullet connector |
| Number of Contacts |
9 |
| Orientation |
180° |
| Circuit Application |
Power & Signal |
| Circular Connector Shell Size |
13 |
| Color |
Black |
| Colour |
Black |
| Connection |
Crimp |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Connector Type |
Socket, straight |
| Contact Gender |
Female |
| Contact Protection |
Yes (With) |
| Contact Shape |
Circular |
| Contact size |
16 |
| Contact Type |
Pin |
| Current Rating |
13a |
| Depth |
26.8mm |
| Diode type |
PIN |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Housing Color |
Black |
| Housing Material |
PA 6.6 GF |
| Insulation Diameter |
0.1inch |
| Length |
34.4mm |
| Material |
Thermoplastic UL94V-1 |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Mating Retention Type |
Threaded Coupling |
| Max Operating Temperature |
105°C |
| Max Voltage Rating (AC) |
600v |
| Max. temperature |
+85°C |
| Min Operating Temperature |
-55°C |
| Min. temperature |
-40°C |
| Mount |
Free Hanging, Cable |
| Nominal Current |
6A |
| Nominal Voltage |
600V |
| Number of Positions |
9 |
| Number of Power Positions |
0 |
| Number of Signal Positions |
9 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
600 |
| Package Quantity |
50 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
50 |
| Panel Mount Feature |
Without |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| Reverse Gender |
No |
| RoHS Compliant |
Yes |
| Seal |
Thread: 3/4 - 20 UNEF 2A |
| Sealable |
No |
| Series |
CPC |
| Shell Material |
Nylon |
| Shell Size |
13 |
| Shielded |
No |
| Shielding |
Unshielded |
| Temperature Range |
-55 - +125°C |
| Thread Size |
3/4 - 20 UNEF-2A |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Width |
22.1mm |
