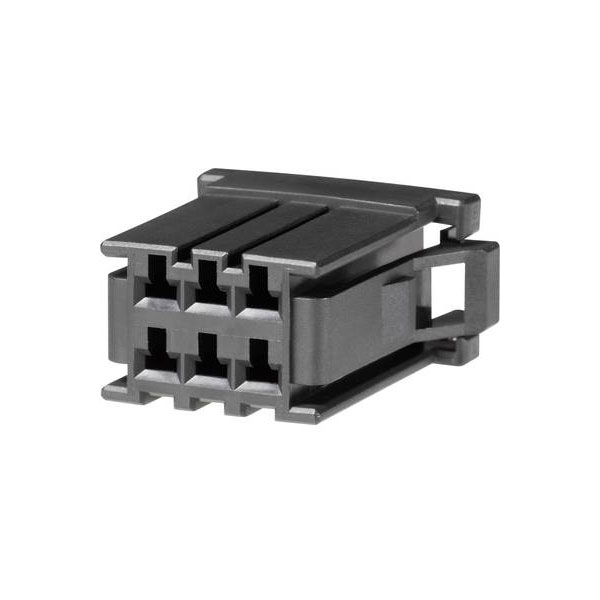

TE Connectivity's 178289-7 is a 16-position female unshrouded wire housing.
It is designed for secure electrical connections in various applications.
The product is typically used in automotive and industrial environments.
Its reliable and robust construction ensures durability and performance.
| Type |
Socket housing cable |
| Pitch |
3.81mm |
| Number of Ways |
16 |
| Number of Rows |
2 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Approvals |
UL |
| Case Material |
Thermoplastic material |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Colour |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Receptacle |
| Connector contact surface |
Tin plated |
| Connector Height |
.48 |
| Connector Length |
1.68 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-board |
| Connector Type |
Socket, straight |
| Contact Base Material |
Copper Alloy |
| Contact Type |
Receptacle |
| Depth |
22.8mm |
| Dimensions |
(L x W x H) 12.53 x 42.71 x 22.8 mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Receptacle |
| Halogen free |
Halogen Free |
| Height |
22.8mm |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Industrial packaging |
No |
| Insulation Material |
Thermoplastic material |
| Lead Free |
Lead Free |
| Length |
12.53mm |
| Material |
Nylon |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. temperature |
-55°C |
| Misc Attribute |
D-3100D |
| Mount |
Free Hanging, Cable |
| Nominal Current |
8A |
| Nominal current - rounded value |
8A |
| Nominal Voltage |
250V AC |
| Number of Contacts |
16 |
| Number of Positions |
16 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
100 |
| Pin shape |
Rectangular |
| Pins per row |
8 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
5.08mm |
| Row-to-Row Spacing |
.2 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
DYNAMIC 3000 Series |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating |
250v |
| Width |
42.71mm |
