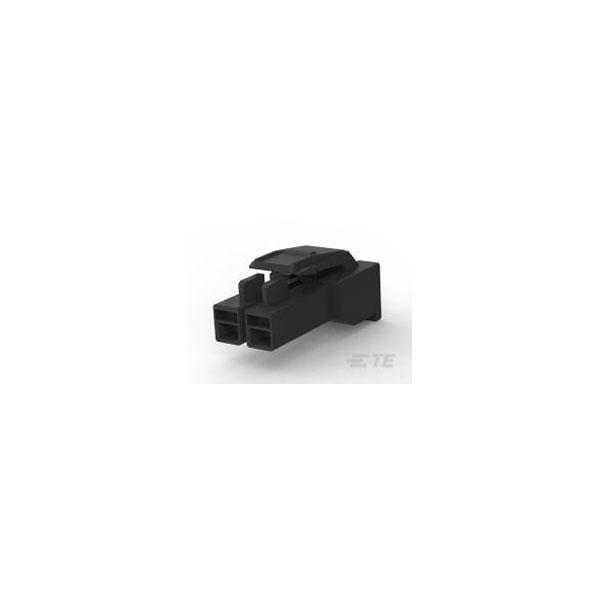

TE Connectivity 176271-9 AMP Plug 2P Universal Power 1 pc Bagged

TE Connectivity
Order Code:

07-3849

Brand: TE Connectivity MPN: 176271-9 EAN-13: 2050006978511
Qty Unit Price (Ex VAT)
20+ £0.260
500+ £0.189
1500+ £0.166
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
71 in stock, despatched in 4 working days

TE Connectivity's 176271-9 is a component of the AMP Universal Power System, known for its durability and reliability. It is ideal for use in power distribution and connectivity applications in industrial settings. The product is available as a single piece packed in a bag format.
Type Rectangular Wire & Cable Connectors & Housings
Pitch 3.9624mm
Number of Ways 2
Number of Rows 1
Mounting Type Cable Mount (Free-Hanging)
Circuit Application Power & Signal
Color Black
Connector & Contact Terminates To Wire & Cable
Connector & Housing Type Plug
Connector Height 10.05
Connector Length 9.06
Connector Product Type Housing
Connector System Wire-to-Wire
Contact Layout Inline
Contact Retention No (Without)
Contact Retention Within Housing Without
Contact Type Receptacle
Depth 19.3mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Male
Glow Wire Rating Standard Part - Not Glow Wire
Height 10.05mm
Housing Color Black
Housing Material PA 6/6
Lead Free Not Applicable
Length 9.06mm
Mating Alignment With
Mating Alignment Type Polarization
Mating Retention With
Mating Retention Type Latch
Max Operating Temperature 221°C
Max Voltage Rating (AC) 600v
Min Operating Temperature -22°C
Misc Attribute TE AMP AMP Universal Power System
Mount Free Hanging, Cable
Number of Contacts 2
Number of Positions 2
Number of Power Positions 0
Number of Signal Positions 0
Operating Temperature Range -22 – 221
Operating Voltage 300
Orientation Straight
Package Quantity 1000
Packaging Bag
Packaging Method Bag
Packaging Quantity 1000
Packaging Type Bag
Panel Mount Feature Without
PCB Mount Retention Without
Primary Product colour Black
RoHS Compliant Yes
Sealable No
Series Universal Power
Strain Relief No (Without)
Termination Crimp
Termination Method to Wire & Cable Crimp
UL Flammability Rating UL 94V-0
Wire Gauge (Max) 26AWG
Wire Gauge (Min) 16AWG
Wire/Cable Gauge 26AWG
