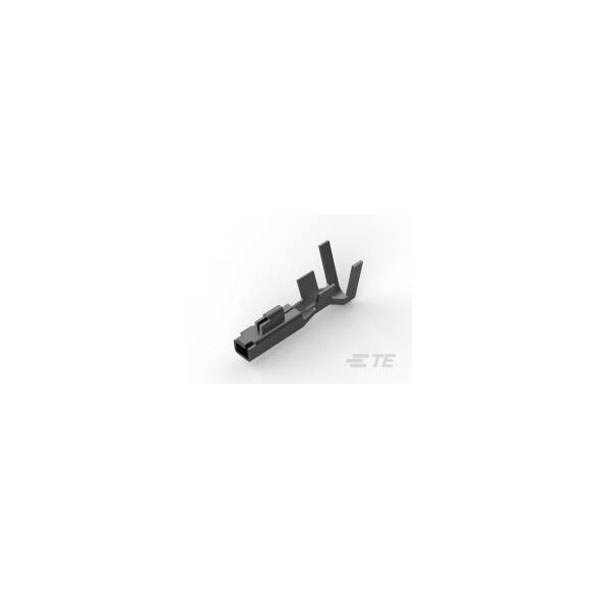

TE Connectivity 175156-2 AMP Power System REC CONT Bag U/P L/P 1pc

TE Connectivity's 175156-2 is a reliable component from the AMP Universal Power System series. It features sturdy construction ideal for providing secure electrical connections in various applications. This part is typically used in automotive and industrial equipment to ensure efficient power distribution.

Type	Connector Contacts
Pin or Socket	Female
Circuit Application	Power
Compatible Insulation Diameter Range	.067 – .13
Connector System	Wire-to-Wire
Contact Base Material	Brass
Contact Current Rating	12a
Contact Current Rating (Max)	12
Contact Material	Brass
Contact Mating Area Plating Material	Tin (Sn)
Contact Mating Area Plating Material Thickness	31.49
Contact Plating	Tin
Contact Retention Within Housing	With
Contact Type	Receptacle
Current Rating	12a
Depth	4.3mm
ELV	Compliant
Gender	Female
Height	5.2mm
Insulation Diameter	0.13inch
Length	12.25mm
Mating Tab Thickness	.025
Mating Tab Width	.047
Max Operating Temperature	221°C
Min Operating Temperature	-22°C
Misc Attribute	TE AMP AMP Universal Power System
Mount	Cable
Operating Temperature Range	-22 – 221
Operating Voltage	50
Orientation	Straight
Package Quantity	1000
Packaging	Bag
Packaging Method	Bag & Box
Packaging Quantity	1000
Packaging Type	Bag
Plating Thickness	0.8um
Product Terminates To	Wire & Cable
Radiation Hardening	No
RoHS Compliant	Yes
Series	Universal Power
Shielding	Unshielded
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Voltage Rating	600v
Wire Gauge (Max)	20AWG
Wire Gauge (Min)	16AWG
Wire Insulation Support	Without
Wire Size	20 – 16
Wire/Cable Gauge	16AWG
