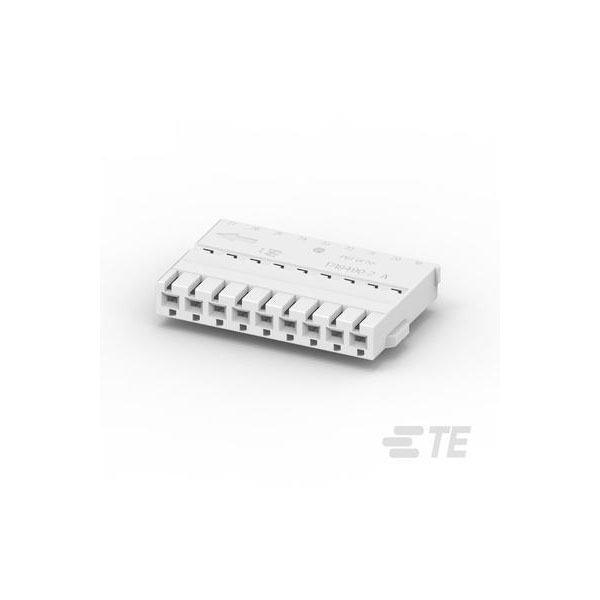

TE Connectivity 1718490-2 is a female unshrouded automotive connector with nine positions.
It features a robust design for reliable performance in challenging automotive environments.
The connector is commonly used for signal and power applications in vehicles.
It provides secure and efficient connectivity solutions in automotive systems.
| Type |
Automotive Connector |
| Number of Rows |
1 |
| Body Material |
PBT |
| Circuit Application |
Signal |
| Color |
Natural |
| Connector System |
Wire-to-Wire |
| Contact Type |
Female Socket |
| ELV |
Compliant |
| Flammability Rating |
UL94 HB |
| Height |
4.2mm |
| Housing Color |
Natural |
| Hybrid Connector |
No |
| Length |
1.4645inch |
| Mating Tab Width |
0.063inch |
| Max Operating Temperature |
248°C |
| Min Operating Temperature |
-40°C |
| Mount |
Free Hanging, Cable |
| Number of Positions |
9 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Box |
| Pitch |
0.157inch |
| Polarized |
No |
| RoHS Compliant |
Yes |
| Sealable |
No (Without) |
| Series |
MCP |
| Serviceable |
Yes |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Width |
0.925inch |
