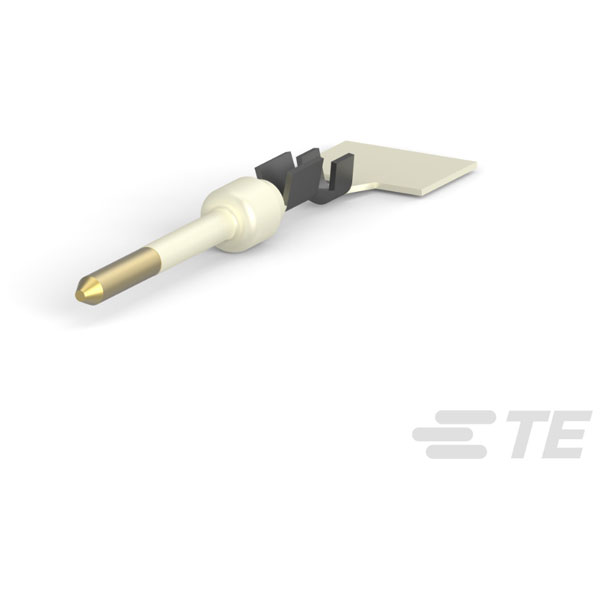

TE Connectivity's 1658540-1 are D-sub contacts designed for pin connections, suitable for 28-24 AWG wire sizes.
These contacts feature a bright gold (BR/AU) finish for enhanced durability and conductivity.
They come in a reel packaging of 10,000, ideal for mass assembly or manufacturing processes.
Typically, they are used in telecommunications, computer systems, and industrial equipment connections.
| Type |
D-Sub Crimp Contact |
| Mounting Type |
BackShell Mounting |
| Mounting Direction |
90 Degree |
| Connection Angle |
90° |
| Plating Material |
Tin |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
.03 – .04 |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
1.2 |
| Contact Gender |
Male |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Gold Flash |
| Contact Mating Area Plating Material Thickness |
100 |
| Contact Plating |
Gold, Tin |
| Contact Style |
Crimp |
| Contact Type |
Pin |
| Depth |
2.16mm |
| ELV |
Compliant |
| Gender |
Male |
| Insulation Diameter |
1.02mm |
| Length |
14.86mm |
| Max Supply Voltage (AC) |
250v |
| Maximum Operating Temperature |
105°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Cable |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
10000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Reel |
| Packaging Quantity |
10000 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
AMPLIMITE HDP-20 |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (Max) |
24AWG |
| Wire Gauge (Min) |
28AWG |
| Wire Insulation Support |
With |
| Wire Size |
28 – 24 |
| Wire/Cable Gauge |
24AWG |
