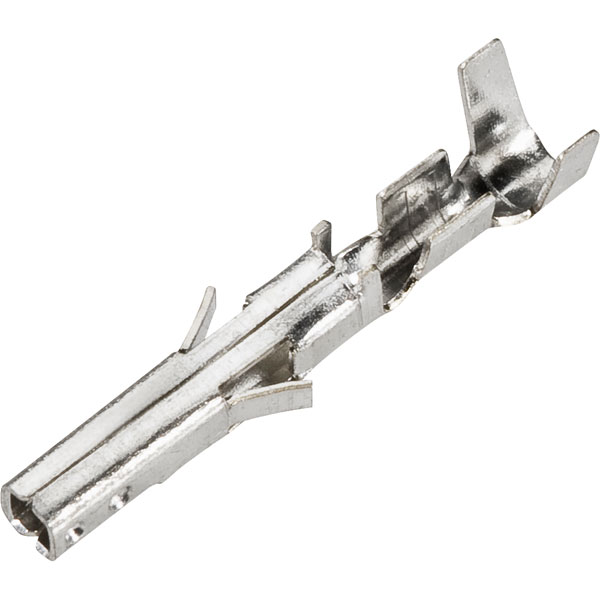

TE Connectivity 1586315-1 VAL-U-LOK Crimp Socket 600V 9A 18-24 AWG

MPN: 1586315-1
Brand: TE Connectivity
Order Code: 50-5841
Country of Origin: China

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
500+	£0.042

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 500

Available to back orderBack-order availability date - 10/06/2026

Product Details
Data Sheets
Quick Quote

Low cost Val-U-Lok loose crimp socket from TE Connectivity, for use with 4.2mm plug-connection system, ideal for industry, household appliances and consumer products.

AWG 22-18
4.2mm pitch
Copper zinc contacts
Nominal current 9A
Operating temperature -40 to +105°C
Manufacturer type description: 1586315-1

Type	Connector Contacts
Pin or Socket	Female
Wire Gauge	0.2 to 0.8 mm²
Approvals	UL
Circuit Application	Power
Compatible Insulation Diameter Range	.059 – .094
Compatible With Agency/Standards Products	CSA
Connector System	Wire-to-Wire
Contact Base Material	Brass
Contact Current Rating	9a
Contact Current Rating (Max)	9
Contact Gender	Female
Contact Material	Brass
Contact Mating Area Plating Material	Tin (Sn)
Contact Plating	Tin
Contact Retention	Yes (With)
Contact Retention Within Housing	With
Contact Shape & Form	Single Beam
Contact Style	Socket
Contact Type	Socket
Current Rating	9a
Depth	3.7mm
Gender	Female
Height	4.5mm
Insulated	Uninsulated
Insulation Diameter	0.094inch
Length	15.05mm
Material	Brass
Mating Square Post Dimension	.045
Maximum Operating Temperature	221°C
Maximum Temperature	+105°C
Maximum Wire Size AWG	18
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mount	Cable
Mounting Type	Wire Mount
Operating Supply Voltage	600v
Operating Temperature Range	-40 – 221
Operating Voltage	600
Orientation	Straight
Package Quantity	500
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	500
Pitch	4.2
Product Terminates To	Wire & Cable
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	VAL-U-LOK
Shielding	Unshielded
Terminal Type	Crimp Socket
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Voltage Rating	600v
Wire Gauge (AWG)	22 to 18
Wire Gauge (Max)	18AWG
Wire Gauge (Min)	22AWG
Wire Insulation Support	Without
Wire Size	24 – 18
Wire/Cable Gauge	18AWG
Wire/Cable Type	Discrete

To use this facility please Sign In.

Questions

*Question functionality currently disabled

Tuesday, February 17, 2015 Question by: Rapid Customer Product code: 50-5841

Q. Do you keep a crimp tool for these contacts?

A. Hi John. Thank you for your question. We do not offer the TE version but we do have 85-0262 we have tried it and found it is suitable on the biggest crimp tie so will be suitable.
