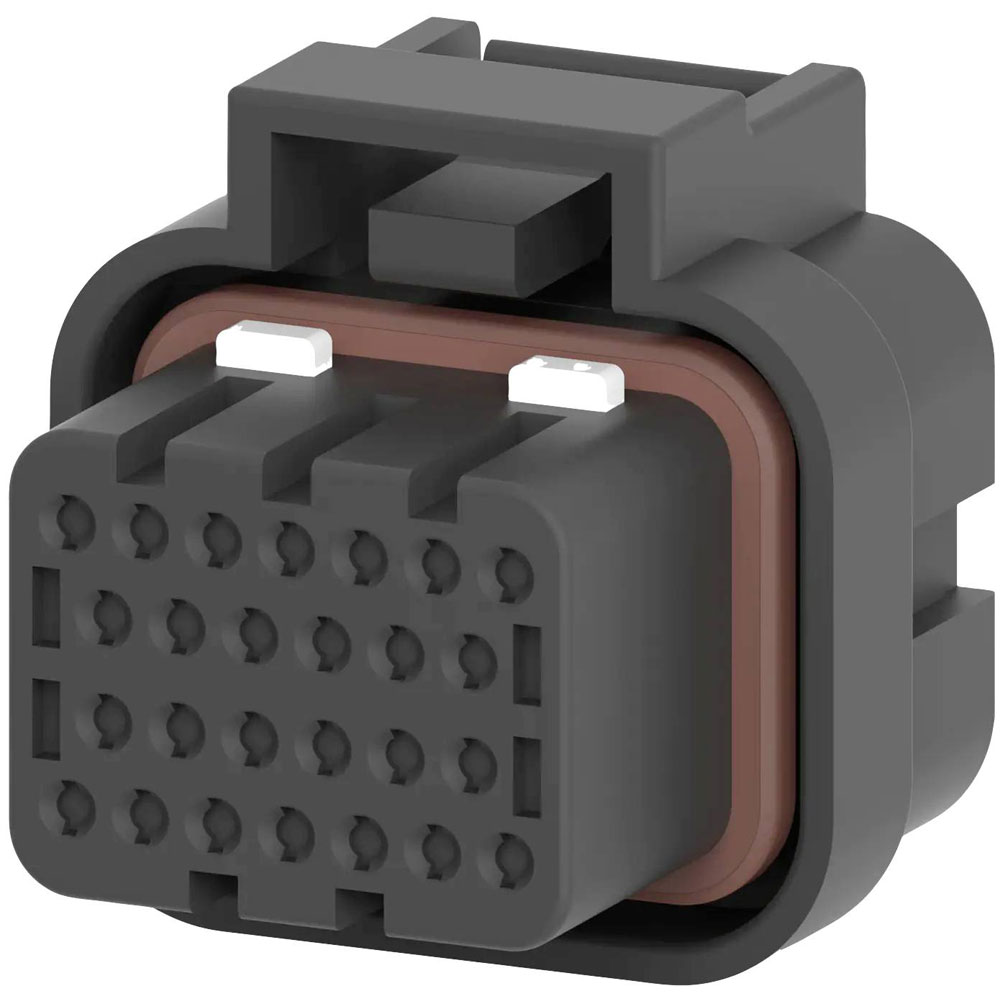

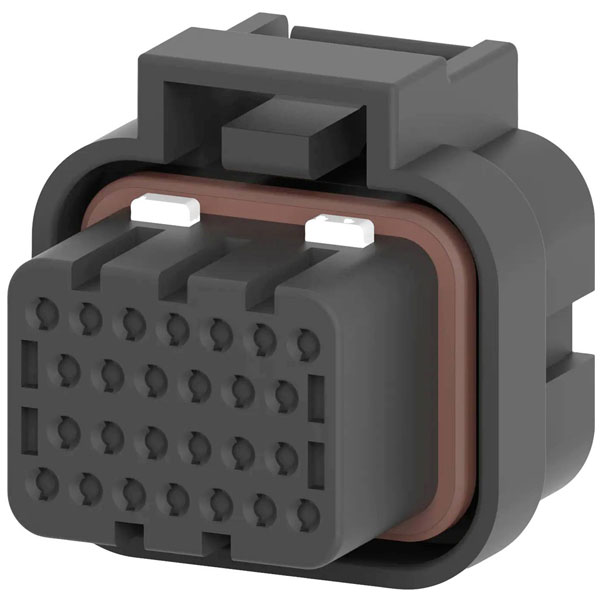

TE Connectivity 1473416-1 Superseal Socket Enclosure 26-Position Black

The TE Connectivity Socket Enclosure 1473416-1, part of the AMP SUPERSEAL 1.0 series, is an industry-grade connector known for its robustness and reliability in high-voltage applications. Designed for demanding environments, it features heavy-duty construction suitable for industrial and electrical engineering applications. Commonly used in automotive and machinery settings, it ensures secure connections in harsh conditions.

Type	Socket enclosure
Body Material	PBT
Colour	Black
Connector System	Wire-to-Device
Contact Type	Female Socket
Depth	32.15mm
ELV	Compliant
Flammability Rating	UL94 V-2
Gender	Male
Height	34.55mm
Housing Colour	Black
Hybrid Connector	No
Lead Free	Not Applicable
Length	32.15mm
Material	Plastic
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Mount	Free Hanging, Cable
Number of Contacts	26
Number of Positions	26
Number of Rows	4
Orientation	Straight
Package Quantity	20
Packaging	Rail/Tube
Pitch	0.118inch
Polarized	Yes
Primary Type	Rectangular
Reach SVHC Compliant	No
RoHS Compliant	Yes
Row Spacing	0.167inch
Sealable	Yes (With)
Series	Superseal
Serviceable	Yes
Strain Relief	No (Without)
Termination	Crimp
Width	1.268inch
