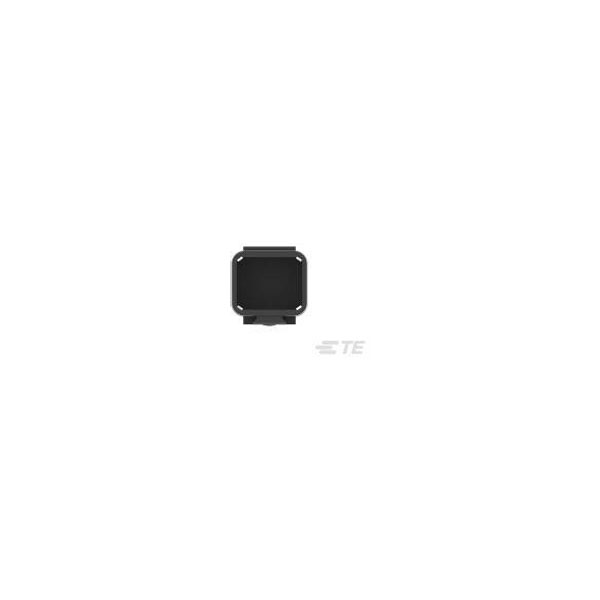

TE Connectivity 1011-245-0805 DT Bullet Connector End Cap 8 Pins

MPN: 1011-245-0805
Brand: TE Connectivity
EAN-13: 2050003952996
Order Code: 07-3284
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (12)

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£2.72
50+	£2.35

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 146 in stock

Product Details
Product Range
Data Sheets

TE Connectivity, 1011-245-0805, is an unshrouded back shell designed for 8-way connections.

It features a 180-degree straight orientation for streamlined cable management.

This component is typically used in automotive and industrial applications to provide strain relief and environmental protection for electrical connectors.

Its robust construction ensures reliable performance in demanding conditions.

Type	Bullet connector end cap
Number of Contacts	8
Number of Rows	N/A
Cable Ø (max.)	13mm
Cable Ø range	8.5 - 13mm
Cable Ø up to	8.5mm
Case Material	Thermoplastic material
Colour	Black
Compatible Cable Diameter Range	.335 – .511
Connection Angle	180°
Cross Section	2 mm² (max)
Current Rating	13A
Flammability Rating	UL94 HB
IP Rating	IP6K9K
max. cross section	2mm²
Maximum Operating Temperature	125°C
Maximum Temperature	+85°C
Min. temperature	-40°C
Minimum Operating Temperature	-55°C
Nominal Voltage	1500V AC
Number of pins	8
Operating Temperature (Max)	257
Operating Temperature Range	-67 – 257
Package Quantity	300
Packaging	Box
Packaging Method	Box
Packaging Quantity	300
Primary Product Material	PA GF
RoHS Compliant	Yes
Sealable	No
Series	DT
Serviceable	Yes
Strain Relief	Yes (With)
UL Flammability Rating	UL 94HB
Wire Gauge (AWG)	20 - 14
