TE Connectivity 1011-233-0305 DT Connector End Cap 3 Pins 180° Housing

TE Connectivity
Order Code:

07-3277

Brand: TE Connectivity MPN: 1011-233-0305 EAN-13: 2050003953030
Qty Unit Price (Ex VAT)
1+ £5.06
50+ £4.54
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
88 in stock, despatched in 4 working days

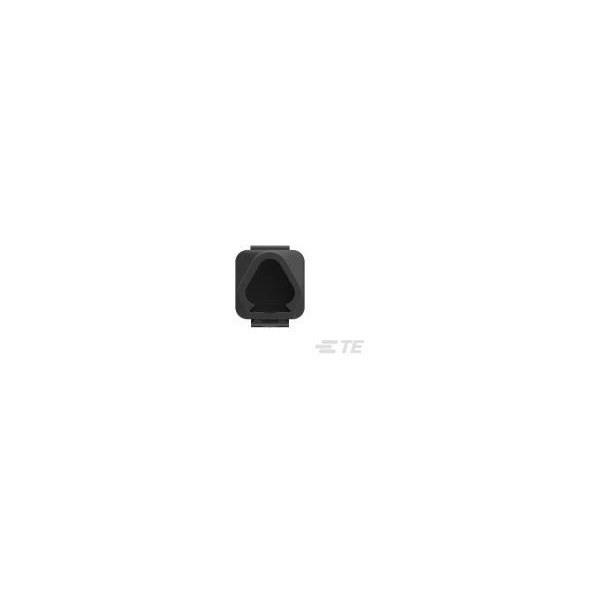

TE Connectivity's DT bullet connector end cap, part number 1011-233-0305, is designed to accommodate three pins. It serves as a protective cap for round connectors, ensuring durability and reliable performance. Common applications include automotive and industrial environments where secure electrical connections are essential.
Type Bullet connector end cap
Number of Contacts 3
Cable Ø (max.) 10mm
Cable Ø range 6 - 10 mm
Cable Ø up to 6mm
Case Material Thermoplastic material
Colour Black
Compatible Cable Diameter Range .236 – .394
Connection angle 180°
Cross Section 2 mm² (max)
Current Rating 13A
IP Rating IP6K9K
max. cross section 2mm²
Max. temperature +85°C
Min. temperature -40°C
Nominal Voltage 1500V AC
Number of Positions 3
Operating Temperature (Max) 257
Operating Temperature Range -67 – 257
Packaging Method Box
Packaging Quantity 450
Primary Product Color Black
Primary Product Material PA GF
Sealable No
Series DT
UL Flammability Rating UL 94HB
Wire Gauge (AWG) 20 - 14
