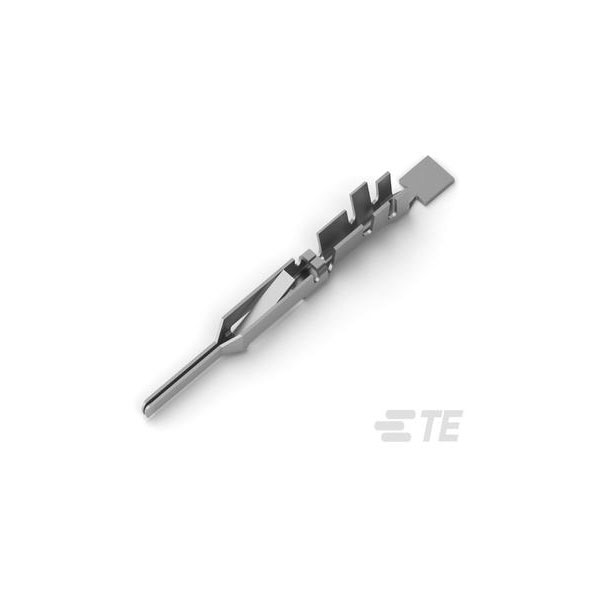

TE Connectivity 1-86561-0 FFC FPC Connector Male Unshrouded 26-22AWG

MPN: 1-86561-0
Brand: TE Connectivity
Order Code: 14-2849
Country of Origin: USA

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
500+	£0.341

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 500

Available to back orderBack order, lead time 4 months

Product Details
Quick Quote

TE Connectivity's 1-86561-0 is a male unshrouded connector suitable for flexible flat cable (FFC) or flexible printed circuit (FPC).

It accommodates wire sizes from 26 to 22 AWG.

The connector is designed for easy installation and reliable performance.

Typical applications include use in consumer electronics and automotive systems.

Type	Connector Contacts
Circuit Application	Signal
Compatible Insulation Diameter Range	.04 – .056
Contact Base Material	Phosphor Bronze
Contact Current Rating (Max)	2
Contact Material	Bronze
Contact Mating Area Plating Material	Tin (Sn)
Contact Mating Area Plating Material Thickness	100
Contact Plating	Tin
Contact Type	Pin
Depth	2.33mm
ELV	Compliant
Gender	Male
Height	2.03mm
Insulation Diameter	0.056inch
Length	21.1mm
Max Current Rating	2a
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Mount	Cable
Operating Temperature Range	-85 – 221
Orientation	Straight
Package Quantity	10000
Package/Case	100
Packaging	Loose Piece
Packaging Method	Loose Piece
PCB Contact Termination Area Plating Material	Tin
Pitch	2.54
Product Terminates To	Wire & Cable
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Termination	IDC
Termination Method to Wire & Cable	Insulation Displacement (IDC)
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	22AWG
Wire Size	26 – 22
Wire/Cable Gauge	26AWG
Wire/Cable Type	Round, Discrete
