TE Connectivity 1-776280-1 Auto Connector Male Shrouded 8 Positions Ring Tongue

MPN: 1-776280-1
Brand: TE Connectivity
Order Code: 14-1565
Country of Origin: Mexico

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
20+	£7.81

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 20

Despatched within 5 working days - 5 in stock

Product Details

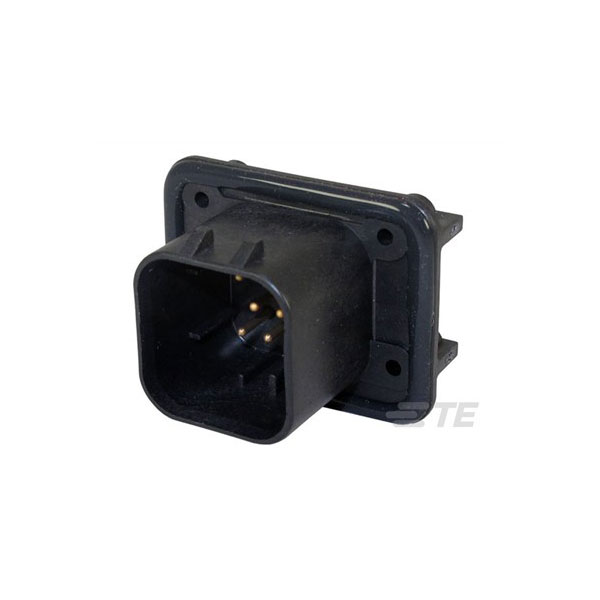

TE Connectivity's part number 1-776280-1 is a male shrouded connector with eight positions.

It is designed with a right-angle header and includes a gasket for secure sealing.

This connector is typically used in automotive applications, offering reliable performance in demanding environments.

It supports efficient electrical connections in vehicle systems.

Number of Positions	8
Pitch	4mm
Orientation	Right Angle
Circuit Application	Power
Colour	Black
Connector System	Wire-to-Device
Contact Finish - Mating	Gold-Palladium
Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Circular
Contact Type	Male Pin
Depth	37.9mm
Flammability Rating	UL94 V-0
Gender	Male
Height	32.1mm
Housing Colour	Black
Insulation Colour	Black
Insulation Material	PBT
Length	1.6063inch
Max Voltage Rating (AC)	250v
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Mount	Through Hole, Panel
Number of Contacts	8
Number of Rows	3
Number of Signal Positions	8
Package Quantity	220
Packaging	Bulk
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Thickness	0.062inch
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	2mm
Sealable	Yes (With)
Series	Ampseal
Shielding	Unshielded
Tab Thickness	1.3mm
Termination	Solder
Width	37.9mm
