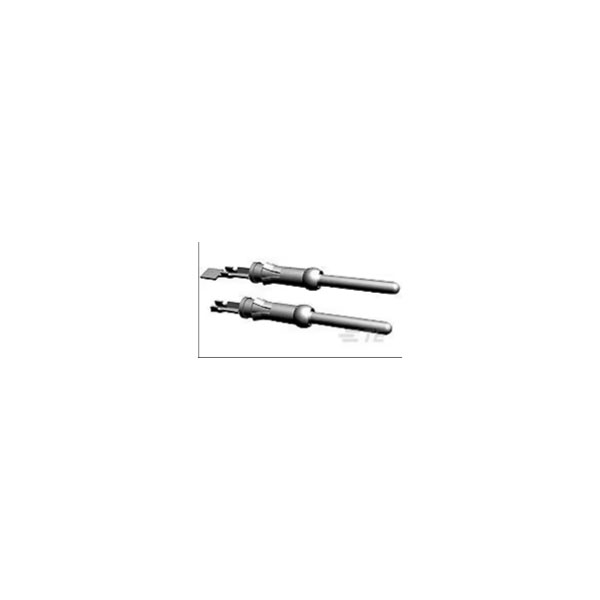

TE Connectivity, 1-66361-4, features high-quality circular contacts.
It is a pin contact with size 18-14 gauge wire range, and a male connector type.
The contact is plated with 30 microinches of gold for enhanced conductivity and durability.
It is typically used in industrial and automotive applications for reliable electrical connections.
| Type |
Crimp Contact |
| Circuit Application |
Power & Signal |
| Compatible Insulation Diameter Range |
.08 – .1 |
| Contact Base Material |
Copper Nickel Alloy |
| Contact Current Rating (Max) |
25 |
| Contact Gender |
Male |
| Contact Material |
Copper, Nickel |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Finish |
Bright |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Retention Within Housing |
With |
| Contact Style |
Pin |
| Contact Type |
Pin |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
50 |
| Current Rating |
13a |
| Depth |
3.68mm |
| Diameter |
1.57mm |
| ELV |
Compliant |
| Gender |
Male |
| Insulation Diameter |
0.1inch |
| Lead Free |
Not Applicable |
| Length |
27.48mm |
| Max Current Rating |
25a |
| Max Operating Temperature |
125°C |
| Min Operating Temperature |
-55°C |
| Mount |
Cable |
| Number of Positions |
1 |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 302 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating Thickness |
760nm |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
Multimate III+ |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Underplate Material |
Nickel |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
14AWG |
| Wire Insulation Support |
With |
| Wire Size |
18 – 14 |
| Wire/Cable Gauge |
14AWG |
| Wire/Cable Type |
Discrete |
