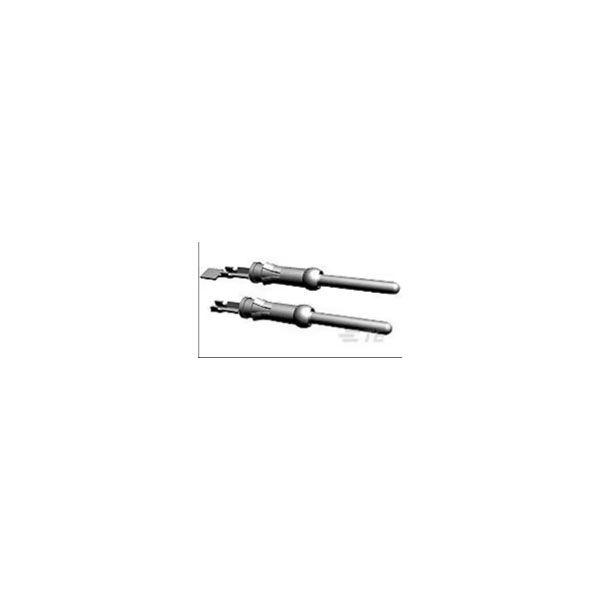

TE Connectivity, 1-66099-4, is a Multimate pin connector designed for male unshrouded applications.
Its main attributes include reliability and versatility in electrical connectivity.
This connector is commonly used in electronic and electrical applications requiring robust connections.
It supports various industrial sectors, ensuring efficient signal transfer.
| Type |
Crimp Contact |
| Circuit Application |
Power & Signal |
| Compatible Insulation Diameter Range |
.08 – .1 |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
13 |
| Contact Gender |
Male |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Precious Metal |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Shape |
Round |
| Contact Shape & Form |
Round |
| Contact Type |
Pin |
| Contact Underplating Material |
Nickel |
| Contact Underplating Material Thickness |
50 |
| Current Rating |
13a |
| Depth |
3.68mm |
| ELV |
Compliant |
| Gender |
Male |
| Insulation Diameter |
0.1inch |
| Lead Free |
Not Applicable |
| Length |
7.25mm |
| Mount |
Cable |
| Operating Temperature Range |
-67 – 194 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
100 |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
Multimate III+ |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (Max) |
18AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire Size |
18 – 16 |
| Wire/Cable Gauge |
16AWG |
| Wire/Cable Type |
Discrete |
