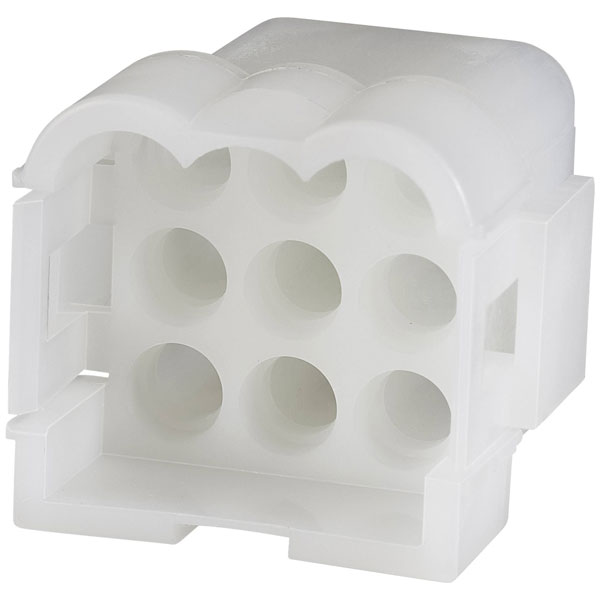

TE Connectivity's 1-480673-0 is a pin and socket cap housing with nine positions.
It is an unshrouded female connector designed for high reliability in electrical applications.
The housing is suitable for use in automotive and industrial systems.
It offers easy assembly and secure connections for various types of equipment.
| Type |
Socket housing cable |
| Pitch |
6.096mm |
| Number of Ways |
9 |
| Number of Rows |
3 |
| Mounting Type |
Panel Mount |
| Case Material |
Polyamide |
| Circuit Application |
Power & Signal |
| Color |
Natural |
| Colour |
Ecru |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Cap |
| Connector contact surface |
Tin plated |
| Connector Length |
28.7 |
| Connector Product Type |
Housing |
| Connector System |
wire-to-wire |
| Connector Type |
Socket, straight |
| Connector Width |
23.11 |
| Contact Gender |
Female |
| Contact Layout |
Matrix |
| Contact Retention |
No (Without) |
| Contact Retention Within Housing |
Without |
| Contact Type |
Pin |
| Current Rating |
28a |
| Depth |
28.7mm |
| Dimensions |
(W x H) 28.7 mm x 23.11 mm |
| Flammability Rating |
UL94 V-2 |
| Gender |
Female |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Height |
23.11mm |
| Housing Color |
Natural |
| Housing Material |
Nylon |
| Industrial packaging |
No |
| Insulation Material |
Polyamide |
| Length |
28.7mm |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-67°C |
| Min. temperature |
-55°C |
| Misc Attribute |
MATE-N-LOK |
| Mount |
Panel, Cable |
| Nominal Voltage |
250V AC |
| Number of Contacts |
9 |
| Number of Positions |
9 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Orientation |
Straight |
| Package Quantity |
200 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
200 |
| Pin shape |
Circular |
| Pins per row |
3 |
| Primary Product colour |
Natural |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
6.1inch |
| Row-to-Row Spacing |
.24 |
| Sealable |
No |
| Series |
.140 MATE-N-LOK |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-2 |
| Voltage Rating |
250v |
| Width |
28.7mm |
| Wire Gauge (Max) |
20AWG |
| Wire Gauge (Min) |
10AWG |
