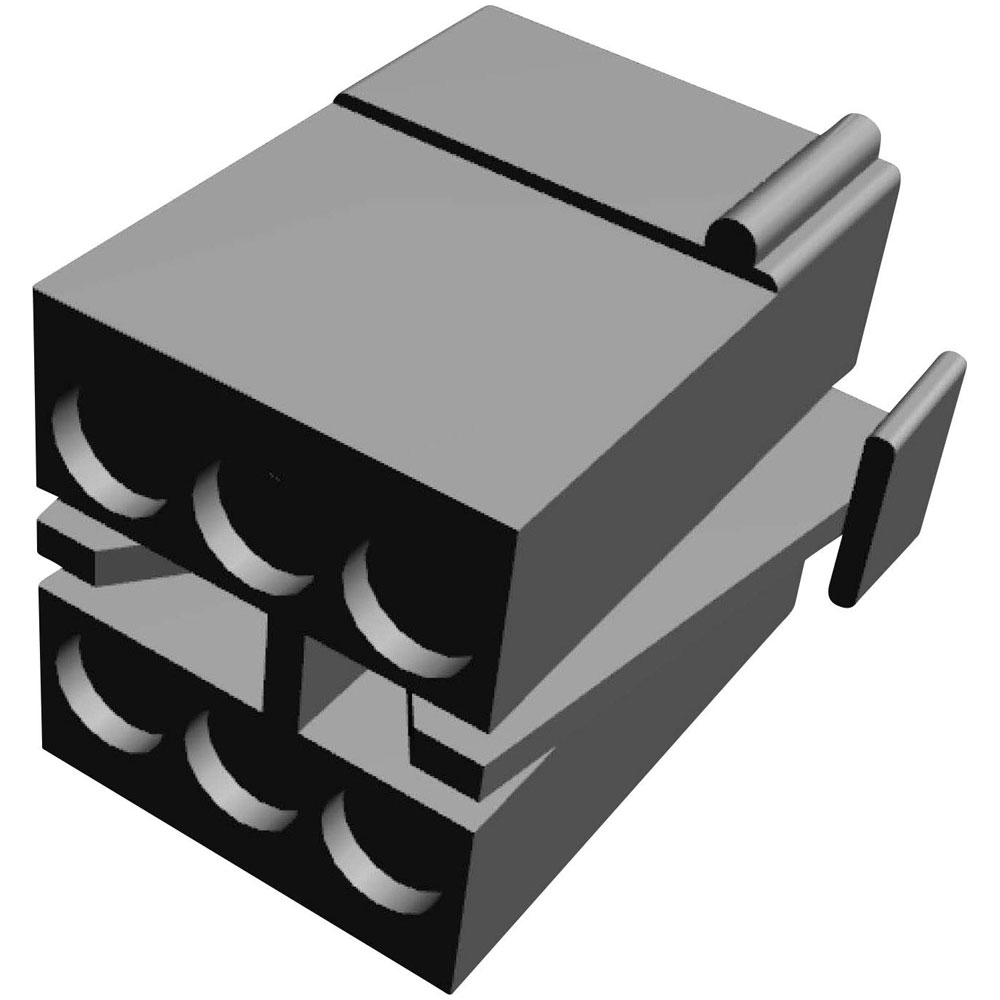

TE Connectivity 1-480270-0 is a socket connector with six female circuits.
It is unshrouded, allowing for easy access and connection.
This component is ideal for use in electrical and electronic equipment where quick and reliable connections are required.
Its durable construction suits it for both consumer and industrial applications.
| Type |
Pin housing cable |
| Pitch |
4.953mm |
| Number of Ways |
6 |
| Number of Rows |
2 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Case Material |
Nylon (NL) |
| Circuit Application |
Power & Signal |
| Compatible With Agency/Standards Products |
CSA |
| Compatible With Approved Standards Products |
UL E28476 |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Plug |
| Connector contact surface |
Tin plated |
| Connector Product Type |
Housing |
| Connector System |
wire-to-wire |
| Contact Gender |
FEMALE |
| Contact Retention Within Housing |
Without |
| Contact Type |
Socket |
| CS |
5.08mm |
| Dielectric Withstanding Voltage |
1000VAC |
| Factory colour |
Ecru |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Housing Material |
Nylon |
| Industrial packaging |
No |
| Insulator Color |
NATURAL |
| Insulator Material |
NYLON |
| Max Operating Temperature |
105 |
| Max. temperature |
+105°C |
| Min Operating Temperature |
-55 |
| Min. temperature |
-55°C |
| Mounting Style |
STRAIGHT |
| Number Of Connectors |
ONE |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
250 |
| Packaging Method |
Package |
| Packaging Quantity |
1 |
| Panel Mount Feature |
Without |
| Pins per row |
3 |
| Plug / Socket |
Plug, straight |
| Primary Product colour |
Natural |
| Rated Current (Signal) |
13 |
| Reliability |
COMMERCIAL |
| Row-to-Row Spacing |
.36 |
| Sealable |
No |
| Series |
MATE-N-LOK |
| Termination Method to Wire & Cable |
Crimp |
| Termination Type |
CRIMP |
| Total Number of Contacts |
6 |
| Total number of pins |
6 |
| UL Flammability Code |
94V-2 |
| UL Flammability Rating |
UL 94V-2 |
| UL Rating |
Certified |
