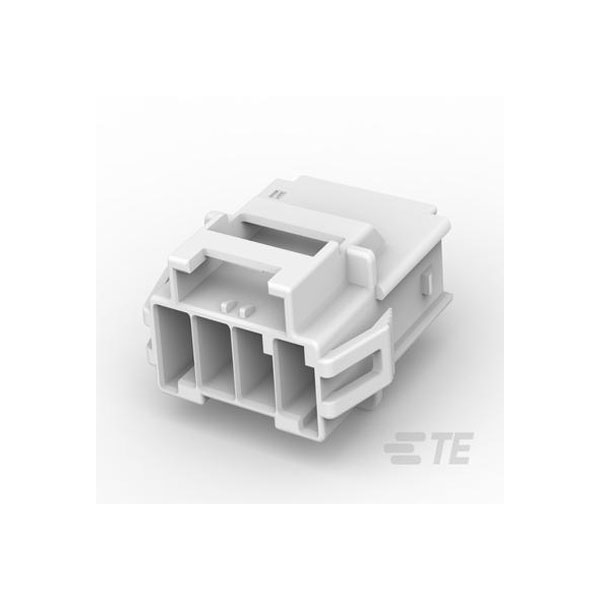

TE Connectivity's 1-1971772-4 is a female unshrouded power board connector made from PBT-A material.
It features a reliable and durable design suitable for high-performance applications.
This connector supports efficient electrical connections and is typically used in power distribution and industrial equipment.
Its robust construction ensures secure mating and long-term use in demanding environments.
| Type |
Wire to Wire Housing |
| Gender |
Receptacle |
| Approvals |
UL |
| Centerline (Pitch) |
5.9944mm |
| Circuit Application |
Power |
| Color |
Natural |
| Compatible With Agency/Standards Products |
UL |
| Compatible With Approved Standards Products |
UL E28476 |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Cap |
| Connector & Keying Code |
A |
| Connector Height |
14.95 |
| Connector Mounting Type |
Panel Mount |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Layout |
Inline |
| Contact Retention |
No (Without) |
| Contact Retention Within Housing |
Without |
| Contact Type |
Tab |
| Depth |
32.65mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Glow Wire Rating |
Standard Part - Not Glow Wire |
| Halogen free |
Not Halogen Free |
| Height |
14.95mm |
| Housing Color |
Natural |
| Housing Material |
PBT GF |
| Length |
27.7mm |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Panel |
| Number of Contacts |
4 |
| Number of Positions |
4 |
| Number of Power Positions |
4 |
| Number of Rows |
1 |
| Operating Temperature Range |
-67 – 221 |
| Operating Voltage |
600 |
| Orientation |
Straight |
| Package Quantity |
200 |
| Packaging |
Carton |
| Packaging Method |
Carton |
| Panel Mount Feature |
With |
| Panel Mount Feature Type |
Latches |
| Panel Thickness |
2mm |
| Pitch |
6mm |
| Primary Product colour |
Natural |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
Power Triple Lock |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-0 |
| UL Rating |
Recognized |
| Voltage Rating |
600v |
| Width |
17.85mm |
