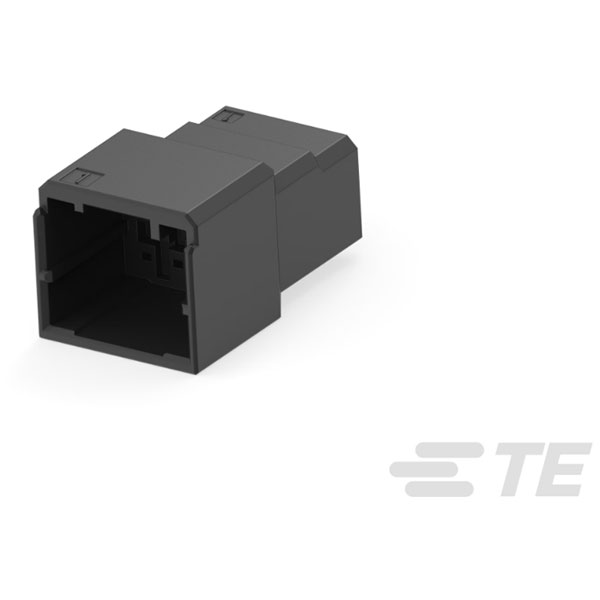

TE Connectivity, 1-1903130-4, is a dynamic 1200D tab housing with a shrouded design.
This female, 8-position component ensures secure connections and reliability.
It is ideal for use in various industrial and commercial applications.
The housing offers enhanced protection against environmental factors, making it suitable for demanding conditions.
| Type |
Wire to Wire Housing |
| Pitch |
2.5mm |
| Number of Ways |
8 |
| Number of Rows |
2 |
| Mounting Type |
Cable Mount (Free-Hanging) |
| Mounting Direction |
Straight |
| Approvals |
UL |
| Body Material |
Glass, Polyester |
| Circuit Application |
Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector Product Type |
Housing |
| Connector System |
Wire-to-Wire |
| Contact Type |
Tab |
| Depth |
11.3mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
0.826inch |
| Housing Color |
Black |
| Length |
0.496inch |
| Mating Retention |
With |
| Max Voltage Rating (AC) |
250v |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Free Hanging |
| Number of Contacts |
8 |
| Number of Positions |
8 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Packaging |
Bag |
| Preloaded |
No |
| Primary Product colour |
Black |
| Primary Type |
CONNECTOR |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.129inch |
| Row-to-Row Spacing |
.129 |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-1200 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| VDE Tested |
No |
| Voltage Rating |
250v |
| Width |
11.3mm |
| Wire/Cable Gauge |
18AWG |
