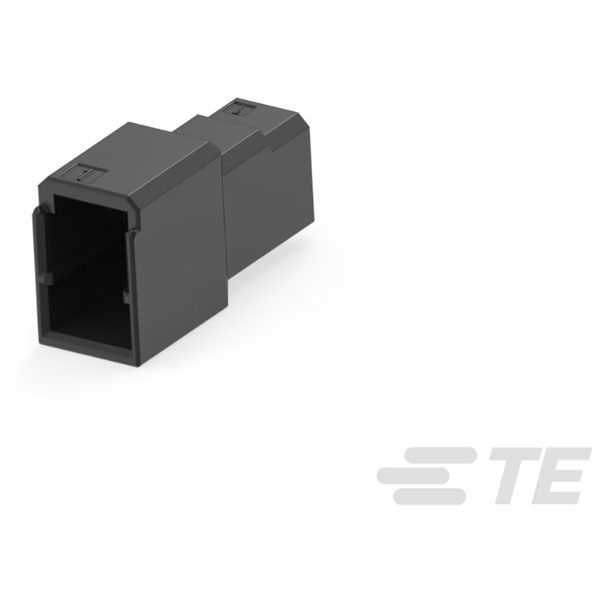

TE Connectivity, 1-1903130-2, is a shrouded female connector designed for reliable electrical connections.
It features four positions and is known for its compact design and high durability.
This connector is used in various industrial and automotive applications where dependable connections are crucial.
The part's robust construction ensures stability in challenging environments.
| Type |
Housing |
| Number of Positions |
4 |
| Pitch |
.129 |
| Number of Rows |
2 |
| Approvals |
UL |
| Body Material |
Glass, Polyester |
| Circuit Application |
Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Wire & Cable |
| Connector & Housing Type |
Housing for Male Terminals |
| Connector Height |
44 |
| Connector Length |
.29 |
| Connector Mounting Type |
Cable Mount (Free-Hanging) |
| Connector System |
Wire-to-Wire |
| Connector Width |
.82 |
| Contact Base Material |
Copper Alloy |
| Contact Type |
Tab |
| Depth |
11.3mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Gender |
Male |
| Height |
0.826inch |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Length |
0.299inch |
| Mating Retention |
With |
| Max Voltage Rating (AC) |
250v |
| Maximum Operating Temperature |
221°C |
| Minimum Operating Temperature |
-67°C |
| Mount |
Free Hanging |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
900 |
| Preloaded |
No |
| Primary Product colour |
Black |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.129inch |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-1200 |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating |
250v |
| Width |
11.3mm |
| Wire/Cable Gauge |
18AWG |
