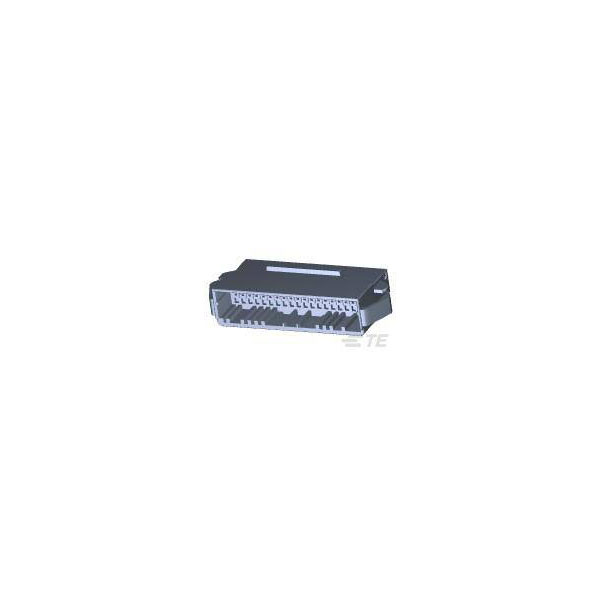

TE Connectivity 1-1903128-0 Dynamic 1100D 40P Tab Housing 1 pc

TE Connectivity manufactures the TE AMP Dynamic Series part 1-1903128-0, which is a connector component. It features a robust design for secure electrical connections in various industrial and automotive applications. This product is often used in environments demanding high reliability and performance.

Type	Rectangular Wire & Cable Connectors & Housings
Number of Contacts	40
Gender	Male
Number of Rows	2
Approvals	UL
Centerline (Pitch)	2.0066mm
Circuit Application	Signal
Colour	Black
Connector & Contact Terminates To	Wire & Cable
Connector & Housing Type	Housing for Male Terminals
Connector Mounting Type	Panel Mount
Connector Product Type	Housing
Connector System	Wire-to-Wire
Contact Plating	Gold
Contact Type	Tab
ELV	Compliant
Flammability Rating	UL94 V-0
Height	0.826inch
Housing Color	Black
Length	48.78mm
Mating Retention	With
Maximum Operating Temperature	221°C
Minimum Operating Temperature	-67°C
Misc Attribute	TE AMP Dynamic Series
Mount	Panel, Snap in
Operating Temperature Range	-67 – 221
Orientation	Straight
Package Quantity	70
Packaging	Bag
Packaging Type	Bag
Panel Thickness	0.078inch
Pitch	0.079inch
Preloaded	No
RoHS Compliant	Yes
Row Spacing	0.129inch
Row-to-Row Spacing	.129
Sealable	No
Selectively Loaded	No (Without)
Series	Dynamic D-1100
Termination	Crimp
Termination Method to Wire & Cable	Crimp
VDE Tested	No
Voltage Rating	125v
Width	13.9mm
Wire Gauge (AWG)	22AWG
