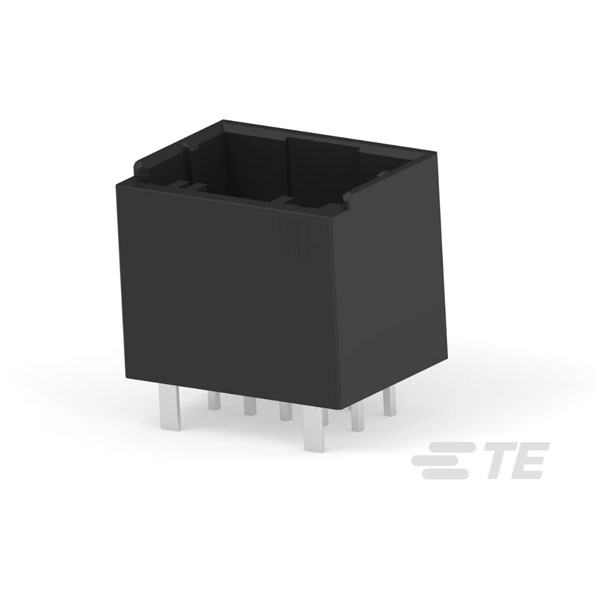

TE Connectivity 1-1827875-5 is a dynamic header assembly suitable for diverse applications.
This male shrouded connector features 10 positions and is designed for enhanced connectivity.
The assembly is black with gold plating, ensuring durability and reliable performance.
Typically used in electronic equipment, it provides secure and efficient connections.
| Type |
Wire to Board Housing |
| Plug / Socket |
Plug |
| Mounting Type |
Board Mount |
| No. of Ways |
10 |
| Mounting Direction |
Vertical |
| Plating Material |
Gold plated |
| Approvals |
UL |
| Centerline (Pitch) |
2.5146mm |
| Circuit Application |
Power & Signal |
| Color |
Black |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Product Type |
Connector Assembly |
| Connector System |
Wire-to-Board |
| Contact Base Material |
Copper Alloy |
| Contact Current Rating |
5a |
| Contact Current Rating (Max) |
5 |
| Contact Material |
Copper Alloy |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
15 |
| Contact Plating |
Gold |
| Contact Retention |
No (Without) |
| Contact Style |
Straight |
| Contact Type |
Pin |
| Current Rating |
5a |
| Depth |
11.3mm |
| ELV |
Compliant |
| Flammability Rating |
UL94 V-0 |
| Halogen free |
Halogen Free |
| Header Type |
Fully Shrouded |
| Height |
0.49inch |
| Housing Color |
Black |
| Housing Material |
Polyester GF |
| Length |
0.594inch |
| Mating Alignment |
With |
| Mating Alignment Type |
Keyed |
| Mating Retention |
With |
| Max Operating Temperature |
221°C |
| Max Voltage Rating (AC) |
250v |
| Min Operating Temperature |
-67°C |
| Mount |
Through Hole |
| Number of Contacts |
10 |
| Number of Positions |
10 |
| Number of Rows |
2 |
| Operating Temperature (Max) |
221 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
30 |
| Packaging |
Rail/Tube |
| Packaging Method |
Tube |
| Packaging Quantity |
30 |
| PCB Connector Type |
PCB Mount Header |
| PCB Mount Alignment |
Without |
| PCB Mount Retention |
With |
| PCB Mount Retention Type |
Retention Leg |
| PCB Mounting Orientation |
Vertical |
| PCB Thickness |
0.063inch |
| Pitch |
0.098inch |
| Preloaded |
Yes |
| Primary Product colour |
Black |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.1299inch |
| Sealable |
No |
| Selectively Loaded |
No (Without) |
| Series |
Dynamic D-1200, AMP |
| Shielding |
Unshielded |
| Shrouded |
Yes (With) |
| Strain Relief |
No (Without) |
| Tail Length |
3.05mm |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| UL Flammability Rating |
UL 94V-0 |
| VDE Tested |
No |
| Voltage Rating |
250v |
| Width |
0.368inch |
